RELV4-16
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

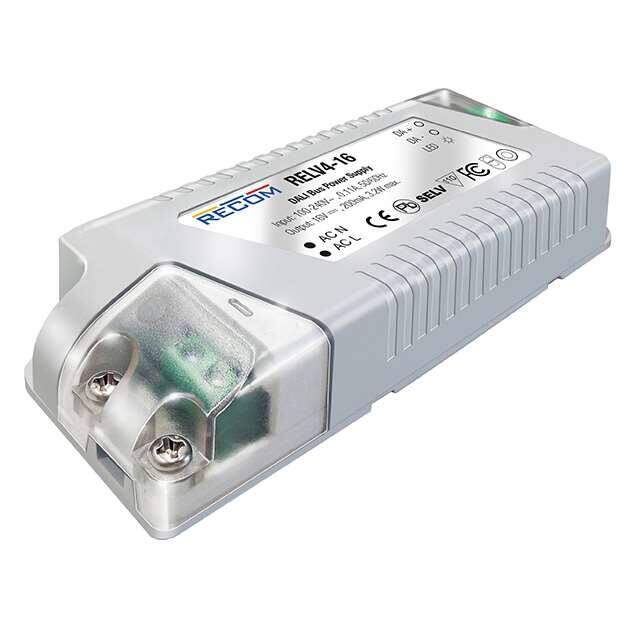

RECOM POWER RELV4-16 LED DRIVER, 1 O/P, 3.2W
PDF
/
Buying Options
Total Price: USD $35.1
Unit Price: USD $35.1032
≥1 USD $35.1032
≥10 USD $34.29712
≥100 USD $34.03048
≥500 USD $33.498784
≥1000 USD $31.90352
≥3000 USD $29.244864
Inventory: 77
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 42mm
Length 112mm
Height 24mm
Technical
Max Output Power 3.2W
Max Input Voltage 264V
Min Input Voltage 90V
Max Output Voltage 16V
Output Power 3.2W
Output Current 200mA
Voltage - Input 90V~264VAC
Current - Output (Max) 200mA
Voltage - Output 1 16V
Max Output Current 200mA
Output Voltage 16V
Voltage - Isolation 3.75kV
Efficiency 68%
Approval Agency CE
Number of Outputs 1
Max Power Dissipation 3W
Power (Watts) 3W
Applications ITE (Commercial)
Min Operating Temperature -20°C
Max Operating Temperature 45°C
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature IP20
Size / Dimension 4.41Lx1.65W x 0.94 H 112.0mmx42.0mmx24.0mm
Series LIGHTLINE RELV4-16 (3.2W)
Operating Temperature -20°C~45°C
Physical
Weight 80g
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 13 Weeks
