REDIN60-24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

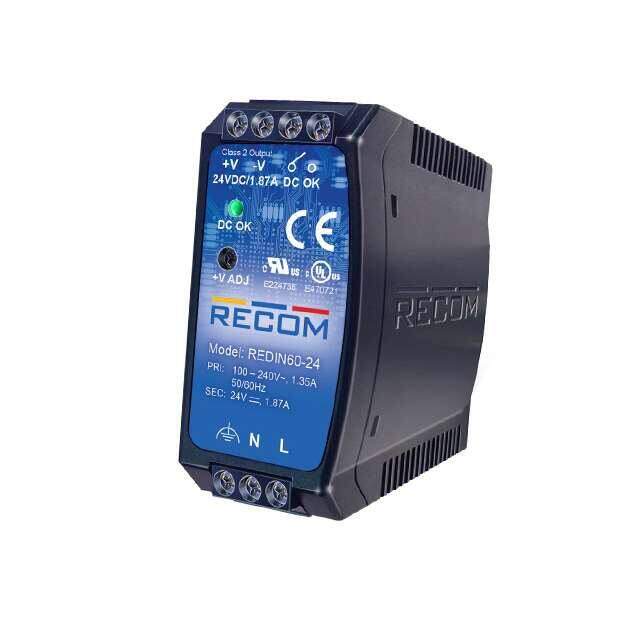

RECOM POWER REDIN60-24 AC/DC DIN Rail Power Supply, Adjustable, Fixed, 1 Output, 85 VAC, 264 VAC, 60 W, 24 VDC
PDF
/
Inventory: 8675
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Weight 332g
Technical
Operating Temperature -20°C~70°C With Derating
Series POWERLINE REDIN60 (60W)
Size / Dimension 3.98Lx1.78W x 3.62 H 101.2mmx45.1mmx92.0mm
Feature Adjustable Output, DC Input Capable, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 60W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PXMA-X8
Number of Outputs 1
Approval Agency CB, CE, cURus
Efficiency 86%
Voltage - Isolation 3.75kV
Output Voltage 24V
Max Output Current 2.5A
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Max Voltage Rating (AC) 264V
Voltage - Input 85V~264VAC
Output Current 2.5A
Output Power 60W
Max Output Voltage 28V
Current - Output 1 2.5A
Max Output Power 60W
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 92mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
