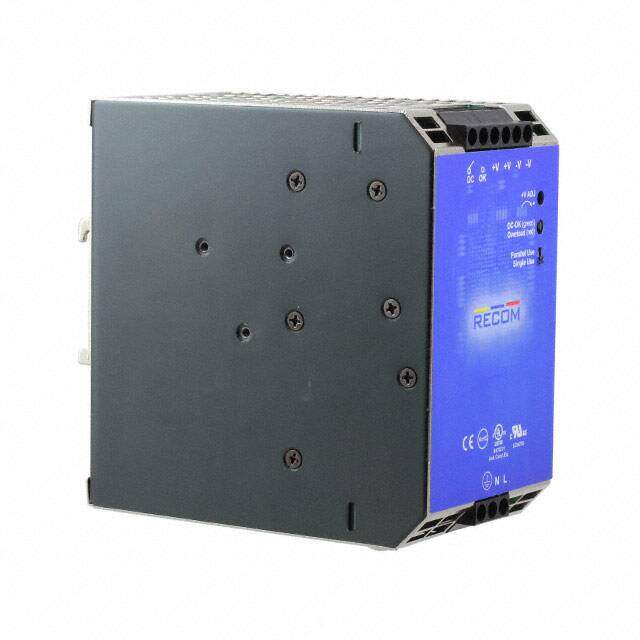

REDIN480-48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 480W
PDF
/
Buying Options
Total Price: USD $162.53
Unit Price: USD $162.5272
≥1 USD $162.5272
Inventory: 56
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type DIN Rail
Weight 1.185kg
Technical
Operating Temperature -25°C~70°C With Derating
Series REDIN480 (480W)
Size / Dimension 4.81Lx2.80W x 4.89 H 122.3mmx71.0mmx124.2mm
Feature Adjustable Output, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications Hazardous Locations, ITE (Commercial)
Power (Watts) 480W
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 93.5%
Voltage - Isolation 3kV
Output Voltage 48V
Voltage - Input 85V~264VAC
Output Current 10A
Output Power 480W
Max Output Voltage 56V
Minimum Load Required No
Dimensions
Height 124.2mm
Compliance
RoHS Status ROHS3 Compliant
