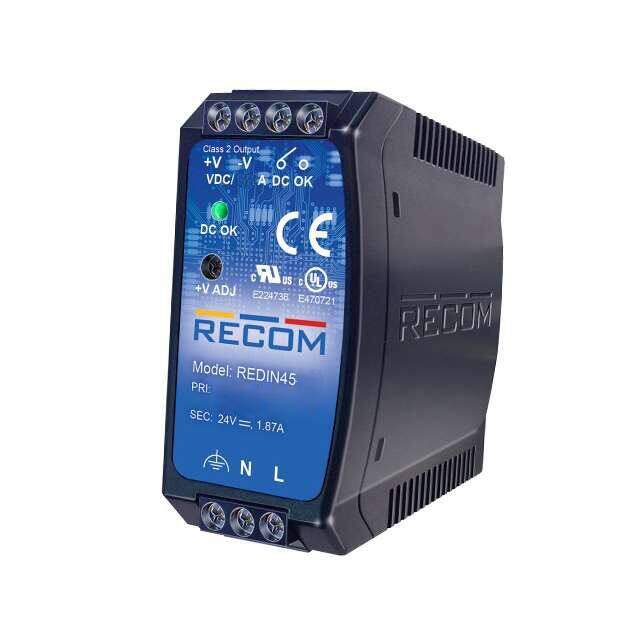

REDIN45-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
RECOM POWER REDIN45-12 AC/DC DIN Rail Power Supply, Adjustable, Fixed, 1 Output, 85 VAC, 264 VAC, 45 W, 12 VDC
PDF
/
Buying Options
Total Price: USD $39.86
Unit Price: USD $39.864
≥1 USD $39.864
Inventory: 115
Minimum: 1
-
+
Technical Details
Technical
Max Voltage Rating (AC) 264V
Voltage - Input 85V~264VAC
Output Current 3.75A
Output Power 45W
Max Output Voltage 15V
Current - Output 1 3.75A
Max Output Power 45W
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Max Output Current 3.75A
Output Voltage 12V
Voltage - Isolation 3.75kV
Efficiency 84%
Approval Agency CB, CE, cURus
Number of Outputs 1
JESD-30 Code R-PXMA-X8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 45W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.98Lx1.78W x 3.62 H 101.2mmx45.1mmx92.0mm
Series POWERLINE REDIN45 (45W)
Operating Temperature -20°C~70°C With Derating
Dimensions
Height 92mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Weight 332g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 15 Weeks
