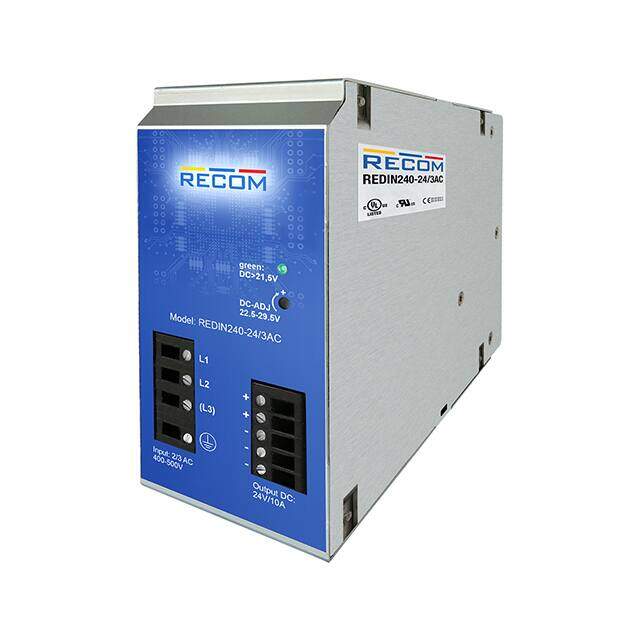

REDIN240-24/3AC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
240W AC/DC-CONVERTER 'POWERLINE'
PDF
/
Buying Options
Total Price: USD $151.4
Unit Price: USD $151.404
≥1 USD $151.404
≥10 USD $141.9352
Inventory: 53
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 26 Weeks
Physical
Mounting Type DIN Rail
Weight 1.1kg
Technical
Operating Temperature -25°C~55°C
Series REDIN240/3AC (240W)
Size / Dimension 6.03Lx2.36W x 5.20 H 153.2mmx60.0mmx132.0mm
Feature Adjustable Output
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications Hazardous Locations, ITE (Commercial)
Power (Watts) 240W
Number of Outputs 1
Approval Agency CE, cULus, cURus
Efficiency 88.5%
Voltage - Isolation 4242kV
Output Voltage 22.5V
Voltage - Output 1 24V
Voltage - Input 320V~575VAC 3 Phase 360V~575VAC 2 Phase
Output Current 10A
Output Power 240W
Minimum Load Required No
Dimensions
Height 130mm
Compliance
RoHS Status ROHS3 Compliant
