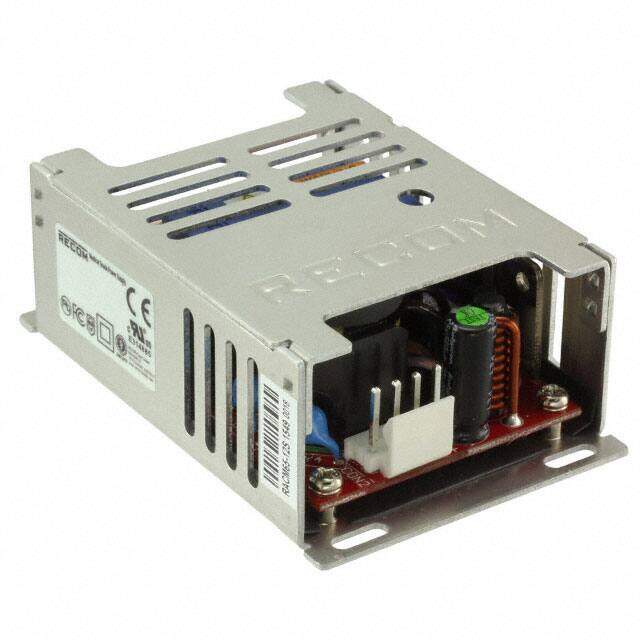

RACM40-05S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
CONV AC/DC 40W 85-264VIN 05VOUT
PDF
/
Buying Options
Total Price: USD $90.98
Unit Price: USD $90.9832
≥1 USD $90.9832
≥10 USD $86.8472
≥100 USD $84.09016
≥500 USD $81.33312
≥1000 USD $78.57608
≥3000 USD $75.81904
Inventory: 43
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 172g
Technical
Operating Temperature -40°C~85°C With Derating
Series MEDLINE RACM40 (40W)
Size / Dimension 3.60Lx2.38W x 1.31 H 91.4mmx60.5mmx33.3mm
Feature Adjustable Output, DC Input Capable, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications Medical
Max Power Dissipation 40W
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 90%
Voltage - Isolation 4kV
Output Voltage 4.5V
Max Output Current 8A
Voltage - Output 1 5V
Voltage - Input 85V~264VAC
Output Current 8A
Output Power 40W
Max Output Voltage 5.5V
Minimum Load Required No
Dimensions
Height 33.3mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
