RACM150-48S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

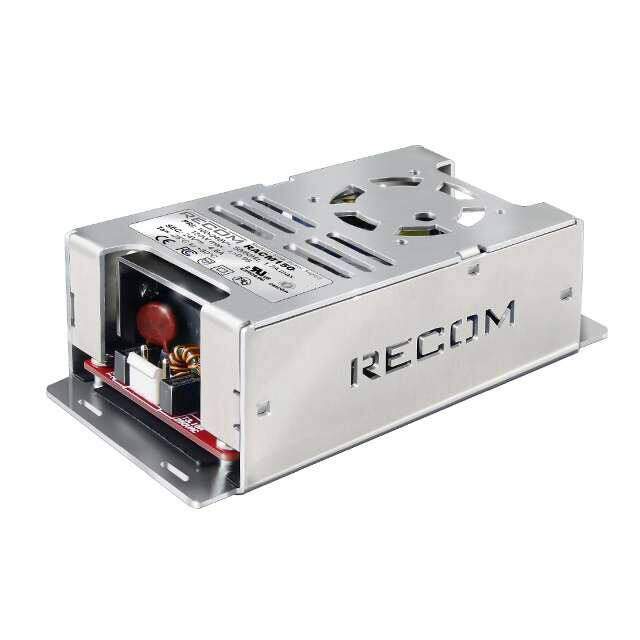

RECOM POWER RACM150-48S POWER SUPPLY, AC-DC, MEDICAL, 48V, 2.71A
PDF
/
Inventory: 8379
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 255g
Technical
Operating Temperature -25°C~80°C With Derating
Series MEDLINE RACM150 (150W)
Size / Dimension 4.60Lx2.44W x 1.94 H 116.8mmx62.0mmx49.2mm
Feature Adjustable Output, DC Input Capable, PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Enclosed
Applications Medical
Max Power Dissipation 150W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XXMA-X8
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 91%
Voltage - Isolation 4kV
Output Voltage 43.2V
Max Output Current 2.71A
Voltage - Output 1 48V
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Voltage - Input 85V~264VAC
Output Power 130W
Max Output Voltage 52.8V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 2.71A
Max Output Power 130W
Minimum Load Required No
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 39.2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
