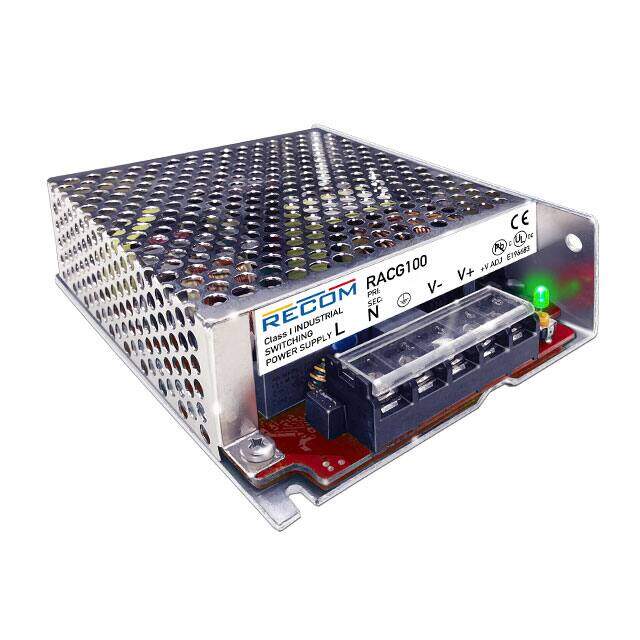

RACG100-48S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 100W
PDF
/
Inventory: 4995
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 38mm
Technical
Minimum Load Required No
Max Output Voltage 52.8V
Output Power 100W
Output Current 2.2A
Voltage - Input 90V~264VAC
Voltage - Output 1 48V
Max Output Current 2.2A
Output Voltage 43.2V
Voltage - Isolation 3kV
Efficiency 88%
Approval Agency CE, cURus
Number of Outputs 1
Max Power Dissipation 100W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, DC Input Capable, PFC, Universal Input
Size / Dimension 5.08Lx3.86W x 1.50 H 129.0mmx98.0mmx38.0mm
Series POWERLINE RACG100 (100W)
Operating Temperature -20°C~60°C With Derating
Physical
Weight 432g
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 14 Weeks
