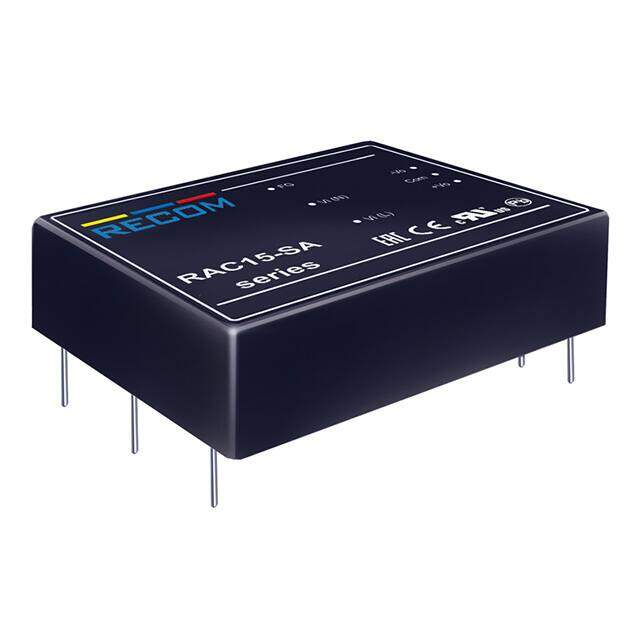

RAC15-05DA-E image
Favorite
RAC15-05DA-E image
Favorite

RAC15-05DA-E

Recom Power
RoHS
RoHS RoHS compliant
Package 8-DIP Module, 6 Leads
Category Power Supplies - Board Mount / AC DC Converters
Description CONV AC/DC 2A 6.5-18VIN 3.0-5.5V
PDF
/
Inventory: 2243
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 54mm
Length 74mm
Height 22mm

Technical

Load Regulation ±3%
Line Regulation ±0.5%
Isolation Voltage 3kV
Current - Output 1 1.5A
Voltage - Output 2 -5V
Max Output Voltage 5V
Output Current 1.5A
Voltage - Input 90V~264VAC
Current - Output (Max) 1.5A 1.5A
Trim/Adjustable Output NO
Input Voltage-Nom 115V
Max Output Current 1.5A
Output Voltage 5V
Efficiency 76%
Approval Agency CE, cULus
Number of Outputs 2
JESD-30 Code R-XDMA-P8
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 15W
Power (Watts) 15W
Applications ITE (Commercial)
Type Enclosed
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Feature SCP
Size / Dimension 2.91Lx2.13W x 0.88 H 74.0mmx54.0mmx22.3mm
Series POWERLINE RAC15-A (15W)
Operating Temperature -40°C~70°C With Derating

Physical

Weight 0.251lb 113.85g
Package / Case 8-DIP Module, 6 Leads
Mounting Type Through Hole
Mount Through Hole
