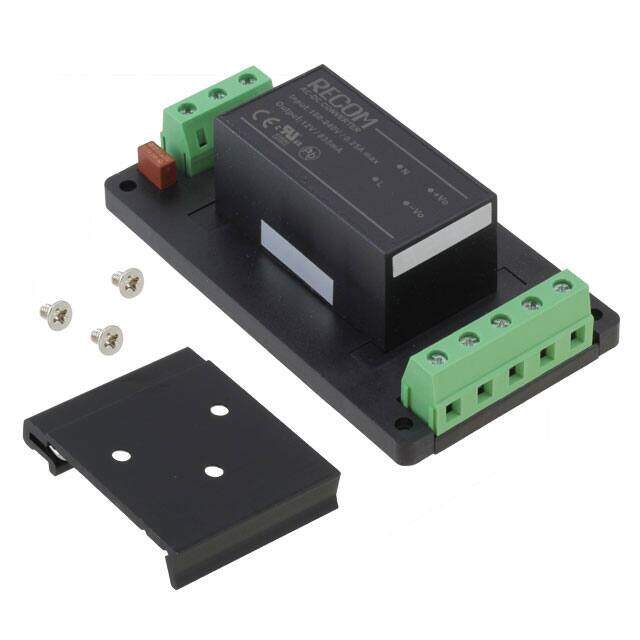

RAC10-05SA-E-ST
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 10W
PDF
/
Buying Options
Total Price: USD $79.54
Unit Price: USD $79.53605
≥1 USD $79.53605
≥10 USD $75.03401
≥100 USD $70.7868
≥500 USD $66.78
≥1000 USD $63
≥3000 USD $59.43396
Inventory: 8925
Minimum: 1
-
+
Technical Details
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 100g
Technical
Operating Temperature -40°C~70°C With Derating
Packaging Bulk
Series POWERLINE RAC10-A (10W)
Size / Dimension 3.78Lx2.12W x 1.06 H 96.0mmx53.9mmx27.0mm
Feature DC Input Capable, Universal Input
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 10W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XXMA-X8
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 71%
Voltage - Isolation 3kV
Output Voltage 5V
Max Output Current 2A
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Voltage - Input 90V~264VAC
Output Current 2A
Max Output Voltage 5V
Dimensions
Height 21.5mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
