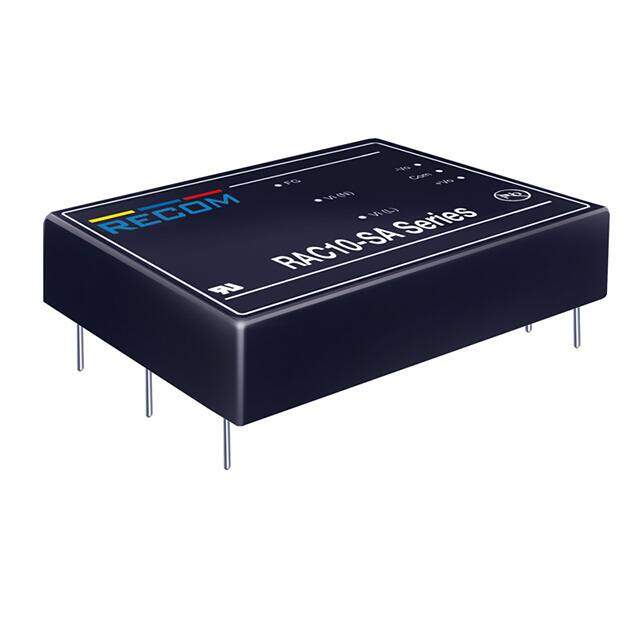

RAC10-05DA-E
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC CONVERTER +/-5V 10W
PDF
/
Buying Options
Total Price: USD $73.22
Unit Price: USD $73.22366
≥1 USD $73.22366
≥10 USD $69.07893
≥100 USD $65.1688
≥500 USD $61.48
≥1000 USD $58
≥3000 USD $54.71698
Inventory: 9513
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Weight 0.22lb 99.79g
Technical
Operating Temperature -40°C~70°C With Derating
Series POWERLINE RAC10-A (10W)
Size / Dimension 2.52Lx1.77W x 0.87 H 64.0mmx45.0mmx22.0mm
Feature SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 10W
Subcategory Power Supply Modules
Max Power Dissipation 10W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
JESD-30 Code R-XDMA-P6
Number of Outputs 2
Qualification Status Not Qualified
Approval Agency CE, cULus
Efficiency 71%
Output Voltage 5V
Max Output Current 800mA
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Current - Output (Max) 800mA 800mA
Voltage - Input 90V~264VAC
Output Current 800mA
Max Output Voltage 5V
Voltage - Output 2 -5V
Isolation Voltage 3kV
Line Regulation ±0.3%
Load Regulation ±0.5%
Dimensions
Height 21.5mm
Length 64mm
Width 45mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
