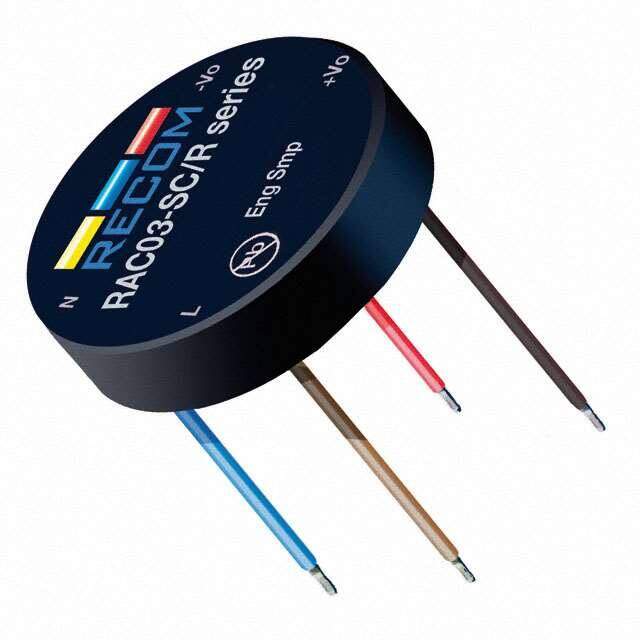

RAC03-3.3SCR/277
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 3.3V 3W
PDF
/
Inventory: 8674
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Number of Pins 4
Weight 40.999988g
Technical
Operating Temperature -25°C~85°C With Derating
Series POWERLINE RAC03-SCR/277 (3W)
Size / Dimension 1.98Dia x 0.44 H 50.3mmx11.1mm
Feature DC Input Capable, Universal Input
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Power Rating 3W
Max Power Dissipation 3W
Peak Reflow Temperature (Cel) NOT SPECIFIED
Depth 50.3mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 68%
Voltage - Isolation 3kV
Output Voltage 3.3V
Max Output Current 900mA
Voltage - Input 85V~305VAC
Output Current 900mA
Output Power 3W
Min Input Voltage 85V
Max Input Voltage 305V
Current - Output 1 900mA
Max Output Power 3W
Minimum Load Required Yes
Nominal Output Voltage 3.3V
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 305V
Dimensions
Height 11.1mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
