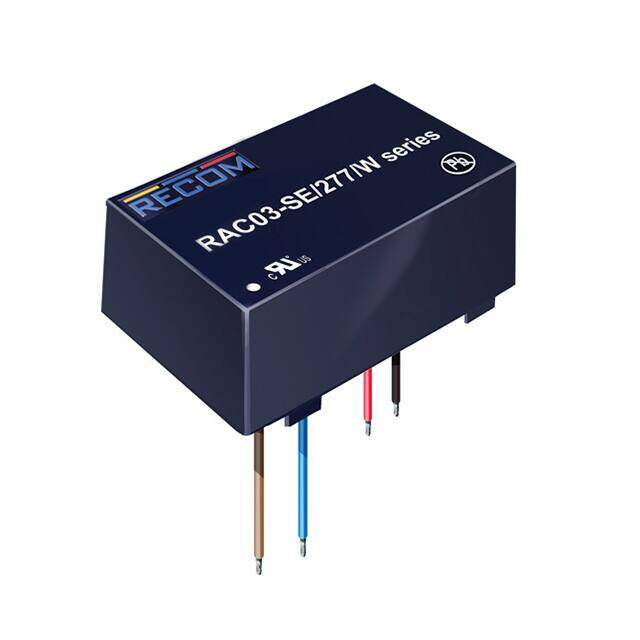

RAC03-24SE/277/W
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
RECOM POWER RAC03-24SE/277/W POWER SUPPLY, AC-DC, 24V, 0.125A, WIRED
PDF
/
Buying Options
Total Price: USD $19.87
Unit Price: USD $19.8704
≥1 USD $19.8704
≥10 USD $19.28432
≥100 USD $18.7
≥500 USD $18.116032
≥1000 USD $17.531536
≥3000 USD $16.947216
Inventory: 421
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 24.3mm
Length 38.2mm
Height 17.4mm
Technical
Max Input Voltage (AC) 305V
Min Input Voltage (AC) 85V
Minimum Load Required Yes
Max Output Power 3W
Current - Output 1 125mA
Max Input Voltage 305V
Min Input Voltage 85V
Max Output Voltage 24V
Output Power 3W
Output Current 125mA
Voltage - Input 85V~305VAC
Trim/Adjustable Output NO
Input Voltage-Nom 230V
Max Output Current 125mA
Output Voltage 24V
Voltage - Isolation 3kV
Efficiency 80%
Approval Agency CE, cURus
Number of Outputs 1
JESD-30 Code R-PDMA-W4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 17.4mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form WIRE
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Power Rating 3W
Applications Household Appliances, ITE (Commercial)
Type Enclosed
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature DC Input Capable, Universal Input
Size / Dimension 1.50Lx0.96W x 0.69 H 38.1mmx24.3mmx17.4mm
Series POWERLINE RAC03-E/277/W (3W)
Operating Temperature -40°C~85°C With Derating
Physical
Weight 29g
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 11 Weeks
