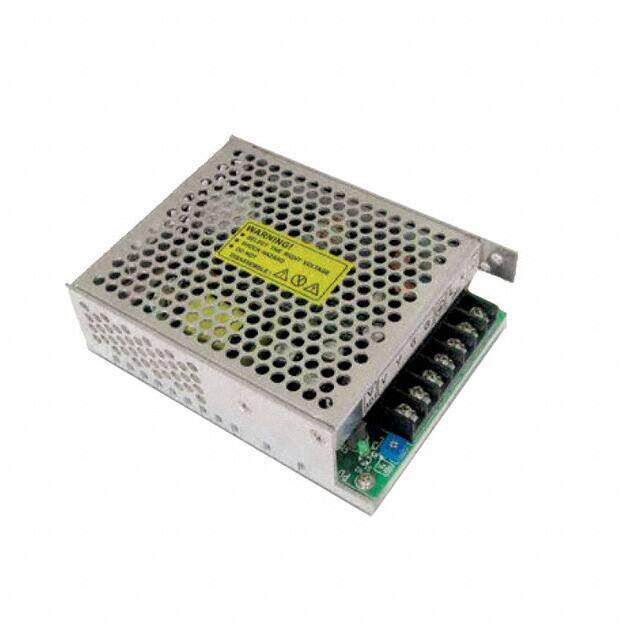

QPD-60-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 60W
PDF
/
Inventory: 9830
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 38.1mm
Technical
Current - Output 1 5A
Output Power 60W
Voltage - Input 88V~264VAC
Voltage - Output 1 12V
Max Output Current 5A
Voltage - Isolation 3kV
Efficiency 80%
Approval Agency CE, cURus
Number of Outputs 1
Max Power Dissipation 60W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 5.08Lx3.86W x 1.50 H 129.0mmx98.0mmx38.0mm
Series QPD-60 (60W)
Published 2010
Operating Temperature -20°C~70°C With Derating
Physical
Number of Pins 7
Mounting Type Chassis Mount
Mount Chassis Mount, Desktop, Panel
Supply Chain
Factory Lead Time 15 Weeks
Alternative Model
