QS40.481
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

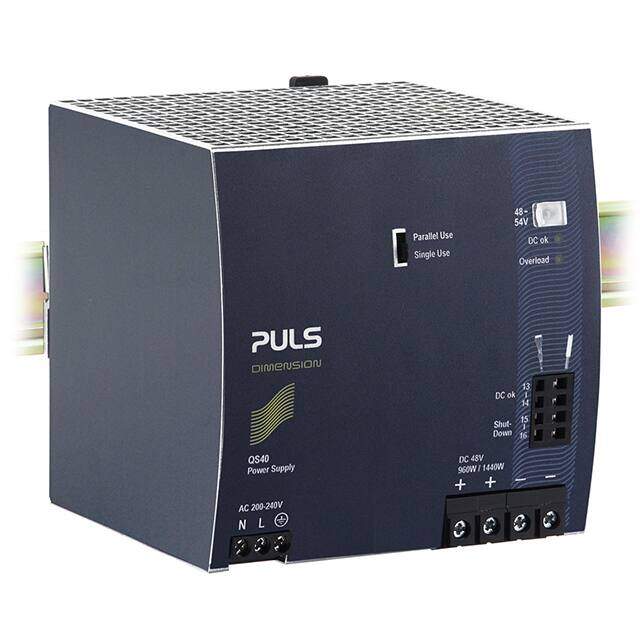

Switched-mode power supply 48 VDC 960 W, QS40.481, Puls
PDF
/
Buying Options
Total Price: USD $1001.88
Unit Price: USD $1001.88
≥1 USD $1001.88
Inventory: 148
Minimum: 1
-
+
Technical Details
Technical
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 124mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Approval Agency CB, cCSAus, CE, cULus, cURus
Efficiency 95%
Voltage - Isolation 500V
Output Voltage 48V
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Current - Output (Max) 20A
Voltage - Input 90V~264VAC
Output Current 20A
Max Output Voltage 54V
Min Input Voltage 100V
Max Input Voltage 240V
Total Power Output-Max 960W
Min Output Voltage 48V
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 960W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 16
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Load Sharing, PFC
Size / Dimension 5.00Lx4.88W x 4.88 H 127.0mmx124.0mmx124.0mm
Series DIMENSION Q (960W)
Operating Temperature -10°C~70°C With Derating
Compliance
RoHS Status RoHS Compliant
Physical
Weight 1.9kg
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
