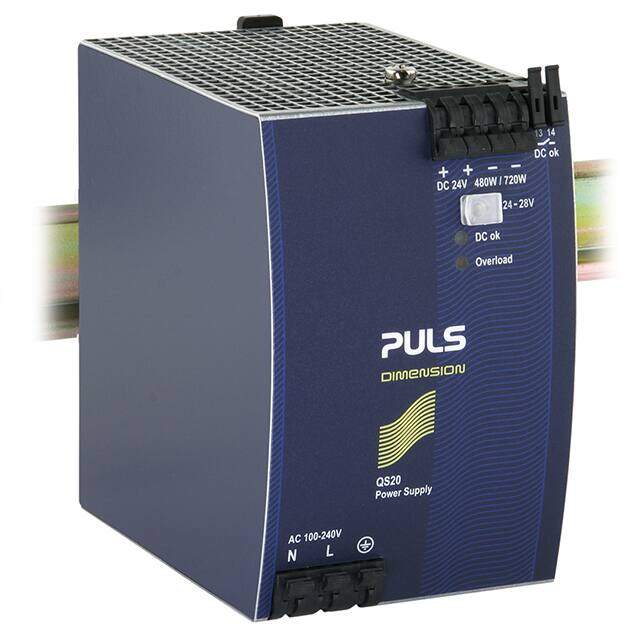

QS20.481
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switch Mode, 8.710A DIN Rail Panel Mount Power Supply Q, 48V dc to 55V dc Dimension
PDF
/
Buying Options
Total Price: USD $590.04
Unit Price: USD $590.04
≥1 USD $590.04
Inventory: 83
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Min Output Voltage 48V
Total Power Output-Max 480W
Current - Output 1 10A
Max Input Voltage 240V
Min Input Voltage 100V
Max Output Voltage 55V
Output Current 10A
Voltage - Input 85V~276VAC 88V~187VDC
Trim/Adjustable Output YES
Input Voltage-Nom 100V
Output Voltage 48V
Voltage - Isolation 500V
Efficiency 94.3%
Approval Agency CB, cCSAus, CE, cULus, cURus
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 24mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 480W
Applications Hazardous Locations, ITE (Commercial)
Type Enclosed
Number of Terminations 10
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Load Sharing, PFC
Size / Dimension 5.00Lx3.23W x 4.88 H 127.0mmx82.0mmx124.0mm
Series DIMENSION Q (480W)
Operating Temperature -10°C~70°C With Derating
Physical
Weight 1.2kg
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
