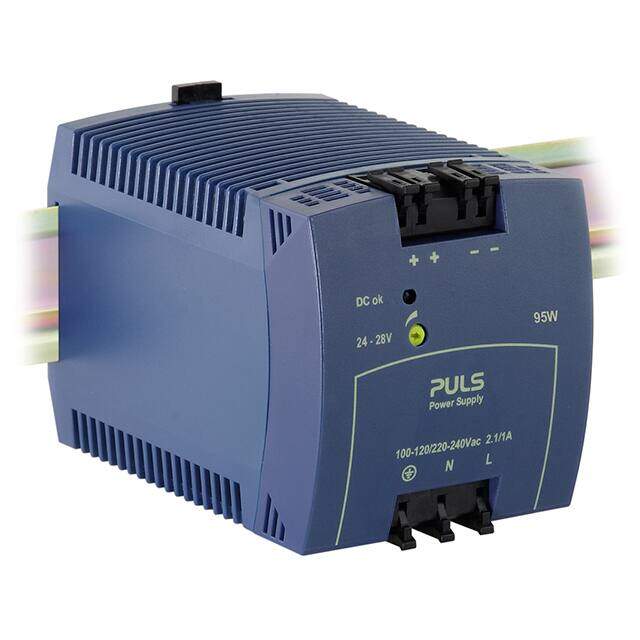

ML95.100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switch Mode, 3.43.95A DIN Rail Panel Mount Power Supply, 24V dc to 28V dc MiniLine
PDF
/
Buying Options
Total Price: USD $255
Unit Price: USD $255
≥1 USD $255
Inventory: 10
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Weight 360g
Technical
Operating Temperature 0°C~70°C With Derating
Series MiniLine (95W)
Size / Dimension 4.06Lx2.87W x 2.95 H 103.0mmx73.0mmx75.0mm
Feature Adjustable Output, DC Input Capable, IP20
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 95W
Additional Feature ALSO OPERATES WITH DC SUPPLY VOLTAGE RANGES FROM 220V TO 375V
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 75mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PXMA-X8
Number of Outputs 1
Approval Agency CB, cCSAus, CE, cULus, cURus
Efficiency 90%
Output Voltage 24.5V
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Current - Output (Max) 3.95A
Voltage - Input 85V~132VAC 184V~264VAC
Output Current 3.95A
Max Output Voltage 28V
Min Input Voltage 100V
Max Input Voltage 120V
Total Power Output-Max 95W
Min Output Voltage 24V
Compliance
RoHS Status RoHS Compliant
