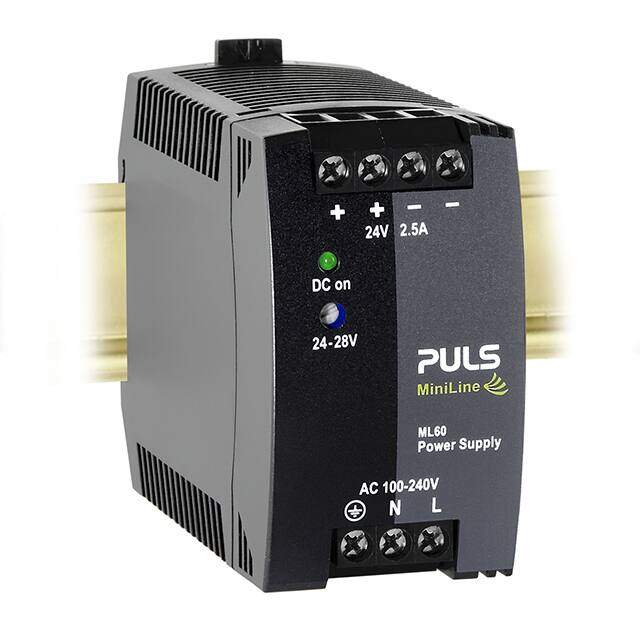

ML60.241
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
, 2.12.5A DIN Rail Panel Mount Power Supply, 24V dc to 28V dc MiniLine
PDF
/
Buying Options
Total Price: USD $102.96
Unit Price: USD $102.96
≥1 USD $102.96
Inventory: 86
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Min Output Voltage 24V
Current - Output 1 2.5A
Max Input Voltage 240V
Min Input Voltage 100V
Max Output Voltage 28V
Output Current 2.5A
Voltage - Input 85V~264VAC
Voltage - Isolation 500V
Efficiency 89.7%
Approval Agency CB, cCSAus, CE, cULus, cURus
Number of Outputs 1
Depth 75mm
Power (Watts) 60W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, Load Sharing, Universal Input
Size / Dimension 3.58Lx1.77W x 2.95 H 91.0mmx45.0mmx75.0mm
Series MiniLine (60W)
Operating Temperature 0°C~70°C With Derating
Physical
Weight 250g
Mounting Type DIN Rail
Mount Panel
Supply Chain
Factory Lead Time 2 Weeks
