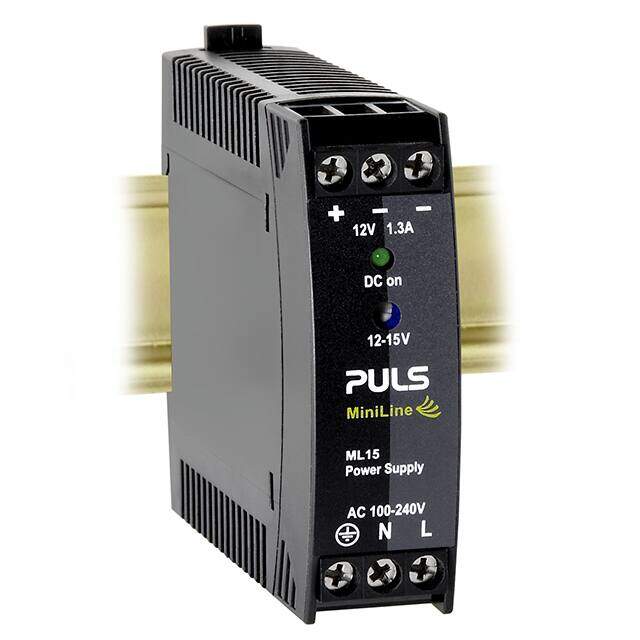

ML15.051
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switch Mode, 3A DIN Rail Panel Mount Power Supply, 5V dc to 5.5V dc MiniLine
PDF
/
Buying Options
Total Price: USD $75.24
Unit Price: USD $75.24
≥1 USD $75.24
Inventory: 109
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Min Output Voltage 5V
Current - Output 1 3A
Max Input Voltage 240V
Min Input Voltage 100V
Max Output Voltage 5.5V
Output Current 3A
Voltage - Input 85V~264VAC
Trim/Adjustable Output YES
Input Voltage-Nom 100V
Output Voltage 5V
Voltage - Isolation 500V
Efficiency 77.2%
Approval Agency CB, cCSAus, CE, cULus, cURus
Number of Outputs 1
JESD-30 Code R-PXMA-X7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 75mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Additional Feature IT ALSO OPERATES WITH INPUT VOLTAGE 264AC TO 300AC
Power (Watts) 15W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output, DC Input Capable, Load Sharing
Size / Dimension 3.58Lx0.91W x 2.95 H 91.0mmx23.0mmx75.0mm
Series MiniLine (15W)
Operating Temperature 0°C~70°C With Derating
Physical
Weight 130g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
