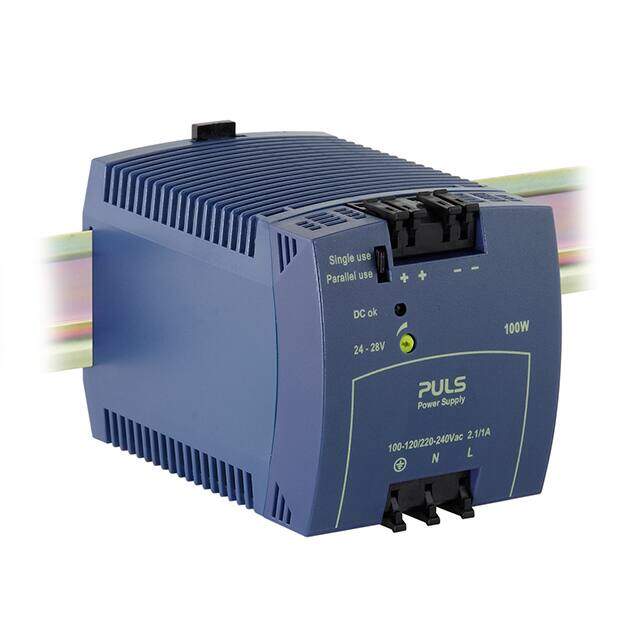

ML100.200
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switch Mode, 3.64.2A DIN Rail Panel Mount Power Supply, 24V dc to 28V dc MiniLine
PDF
/
Buying Options
Total Price: USD $256.61
Unit Price: USD $256.608
≥1 USD $256.608
Inventory: 60
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Min Output Voltage 24V
Current - Output 1 4.2A
Max Input Voltage 480V
Min Input Voltage 380V
Max Output Voltage 28V
Output Current 4.2A
Voltage - Input 380V~480VAC 2 Phase
Trim/Adjustable Output YES
Input Voltage-Nom 380V
Output Voltage 24V
Efficiency 90%
Approval Agency CB, CE, cULus, cURus
Number of Outputs 1
JESD-30 Code R-XXMA-X8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 75mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 100W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output, DC Input Capable, Load Sharing
Size / Dimension 4.06Lx2.87W x 2.95 H 103.0mmx73.0mmx75.0mm
Series MiniLine (100W)
Operating Temperature -40°C~70°C With Derating
Physical
Weight 360g
Package / Case 100
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
