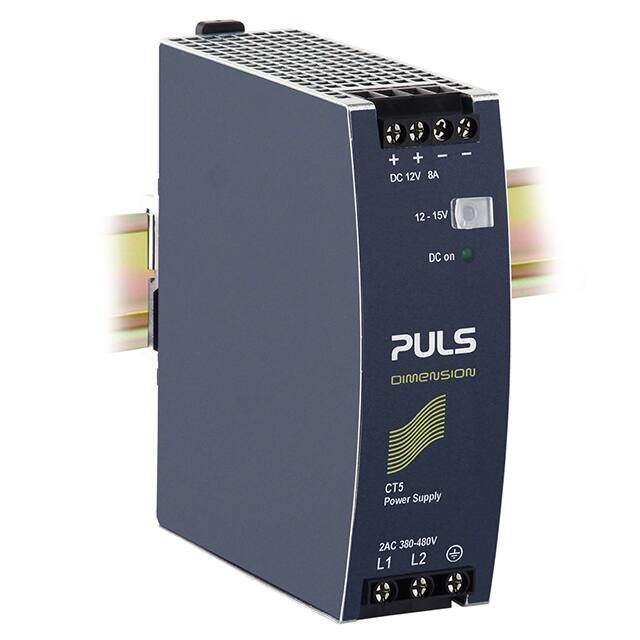

CT5.241
RoHS
RoHS compliant
RoHS compliantPackage 120
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switch Mode, 4.35A DIN Rail Panel Mount Power Supply, 24V dc to 28V dc Dimension
PDF
/
Buying Options
Total Price: USD $289.08
Unit Price: USD $289.08
≥1 USD $289.08
Inventory: 205
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount Panel
Mounting Type DIN Rail
Package / Case 120
Weight 500g
Technical
Operating Temperature 0°C~70°C With Derating
Series DIMENSION C (120W)
Size / Dimension 4.61Lx1.57W x 4.88 H 117.0mmx40.0mmx124.0mm
Feature Adjustable Output, DC Input Capable, Load Sharing
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 120W
Additional Feature ALSO REQUIRE 576VAC TO 700VAC INPUT VOLTAGE
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 124mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-X8
Number of Outputs 1
Approval Agency cCSAus, CE, cULus, cURus
Efficiency 90.4%
Voltage - Isolation 500V
Output Voltage 24V
Input Voltage-Nom 380V
Trim/Adjustable Output YES
Voltage - Input 323V~576VAC 3 Phase
Output Current 5A
Max Output Voltage 28V
Min Input Voltage 380V
Max Input Voltage 480V
Current - Output 1 5A
Min Output Voltage 24V
Compliance
RoHS Status RoHS Compliant
