CT10.241-C1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

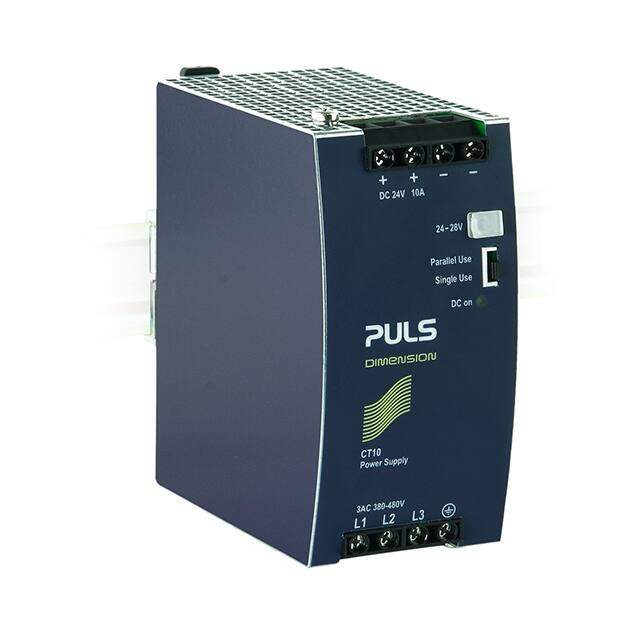

DIN RAIL PWR SUPPLY 240W 24V 10A
PDF
/
Buying Options
Total Price: USD $415.8
Unit Price: USD $415.8
≥1 USD $415.8
Inventory: 101
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mounting Type DIN Rail
Surface Mount NO
Technical
Operating Temperature -25°C~70°C With Derating
Series DIMENSION C (240W)
Size / Dimension 4.61Lx2.44W x 4.88 H 117.0mmx62.0mmx124.0mm
Feature Adjustable Output, Conformal Coating, Load Sharing
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 9
Type Enclosed, Conformal Coated
Applications ITE (Commercial)
Power (Watts) 240W
Additional Feature ALSO REQUIRE 576VAC TO 700VAC INPUT VOLTAGE
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-X9
Number of Outputs 1
Approval Agency CB, CE, cULus, cURus
Efficiency 92.9%
Voltage - Isolation 500V
Output Voltage 24V
Voltage - Output 1 24V
Input Voltage-Nom 380V
Trim/Adjustable Output YES
Current - Output (Max) 10A
Voltage - Input 323V~576VAC 3 Phase
Total Power Output-Max 240W
Compliance
RoHS Status RoHS Compliant
