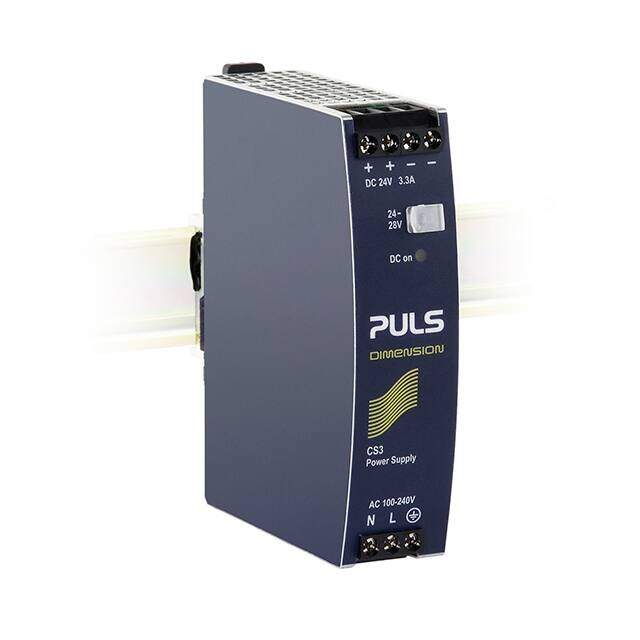

CS3.241
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switch Mode, 2.73.3 DIN Rail Panel Mount Power Supply, 24V dc to 28V dc Dimension
PDF
/
Buying Options
Total Price: USD $197.85
Unit Price: USD $197.85425
≥1 USD $197.85425
Inventory: 25
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount Panel
Mounting Type DIN Rail
Weight 430g
Technical
Operating Temperature 0°C~70°C With Derating
Series DIMENSION C (80W)
Size / Dimension 4.02Lx1.26W x 4.88 H 102.0mmx32.0mmx124.0mm
Feature Adjustable Output, DC Input Capable, Load Sharing, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 80W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 124mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PXMA-X8
Number of Outputs 1
Approval Agency cCSAus, CE, cULus, cURus
Efficiency 89.8%
Output Voltage 24V
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Voltage - Input 90V~264VAC
Output Current 3.3A
Max Output Voltage 28V
Min Input Voltage 100V
Max Input Voltage 240V
Current - Output 1 3.3A
Total Power Output-Max 80W
Min Output Voltage 24V
Compliance
RoHS Status RoHS Compliant
