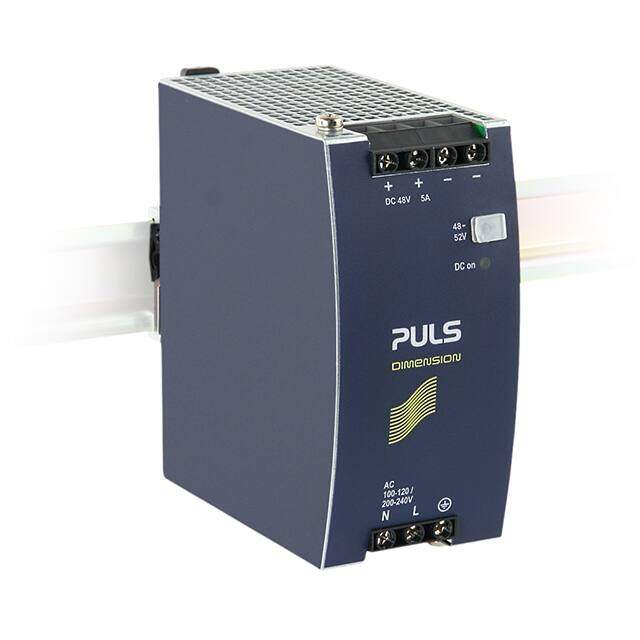

CS10.481
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switch Mode, 4.65A DIN Rail Panel Mount Power Supply, 48V dc to 52V dc Dimension
PDF
/
Buying Options
Total Price: USD $368.28
Unit Price: USD $368.28
≥1 USD $368.28
Inventory: 111
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Min Output Voltage 48V
Total Power Output-Max 288W
Current - Output 1 5A
Max Input Voltage 120V
Min Input Voltage 100V
Max Output Voltage 52V
Output Current 5A
Voltage - Input 100V~120VAC 200V~240VAC
Trim/Adjustable Output YES
Input Voltage-Nom 100V
Output Voltage 48V
Voltage - Isolation 3kV
Efficiency 91.6%
Approval Agency CB, cCSAus, CE, cULus, cURus
Number of Outputs 1
JESD-30 Code R-PXMA-X8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Depth 124mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 240W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Load Sharing
Size / Dimension 4.61Lx2.36W x 4.88 H 117.0mmx60.0mmx124.0mm
Series DIMENSION C (240W)
Operating Temperature -25°C~70°C With Derating
Physical
Weight 700g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
