CS10.241
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

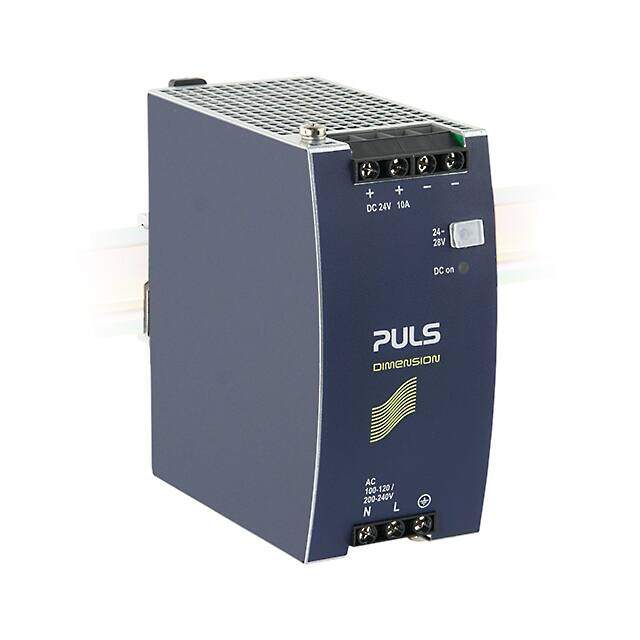

Switched-mode power supply unit for DIN rail 24 VDC 240 W, CS10.241, Puls
PDF
/
Buying Options
Total Price: USD $289.08
Unit Price: USD $289.08
≥1 USD $289.08
Inventory: 81
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Weight 700g
Technical
Operating Temperature -25°C~70°C With Derating
Series DIMENSION C (240W)
Size / Dimension 4.61Lx2.36W x 4.88 H 117.0mmx60.0mmx124.0mm
Feature Adjustable Output, Load Sharing
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 240W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 124mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-X8
Number of Outputs 1
Approval Agency cCSAus, CE, cULus, cURus
Efficiency 91.6%
Voltage - Isolation 3kV
Output Voltage 24V
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Voltage - Input 90V~132VAC 180V~264VAC
Output Current 10A
Max Output Voltage 28V
Min Input Voltage 100V
Max Input Voltage 120V
Current - Output 1 10A
Total Power Output-Max 240W
Min Output Voltage 24V
Compliance
RoHS Status RoHS Compliant
