CPS20.481
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

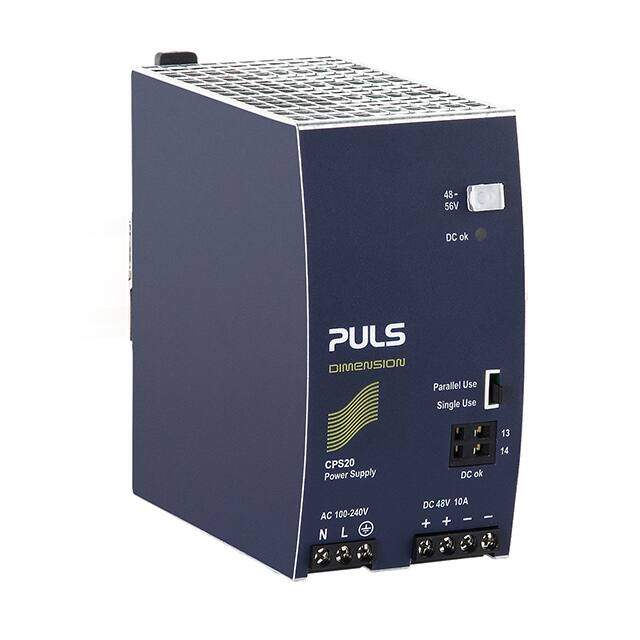

Switched-mode power supply 48 VDC 480 W, CPS20.481, Puls
PDF
/
Buying Options
Total Price: USD $526.68
Unit Price: USD $526.68
≥1 USD $526.68
Inventory: 102
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP20
RoHS Status RoHS Compliant
Dimensions
Width 127mm
Length 65mm
Technical
Min Output Voltage 48V
Max Input Voltage 240V
Min Input Voltage 100V
Max Output Voltage 56V
Output Current 10A
Voltage - Input 100V~264VAC
Current - Output (Max) 10A
Voltage - Output 1 48V
Voltage - Isolation 3kV
Efficiency 93.9%
Approval Agency cCSAus, CE, cULus, cURus
Number of Outputs 1
Depth 124mm
Power (Watts) 480W
Applications Hazardous Locations, ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Size / Dimension 5.00Lx2.56W x 4.88 H 127.0mmx65.0mmx124.0mm
Series DIMENSION C (480W)
Operating Temperature -25°C~70°C With Derating
Physical
Weight 1kg
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
