CPS20.241
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

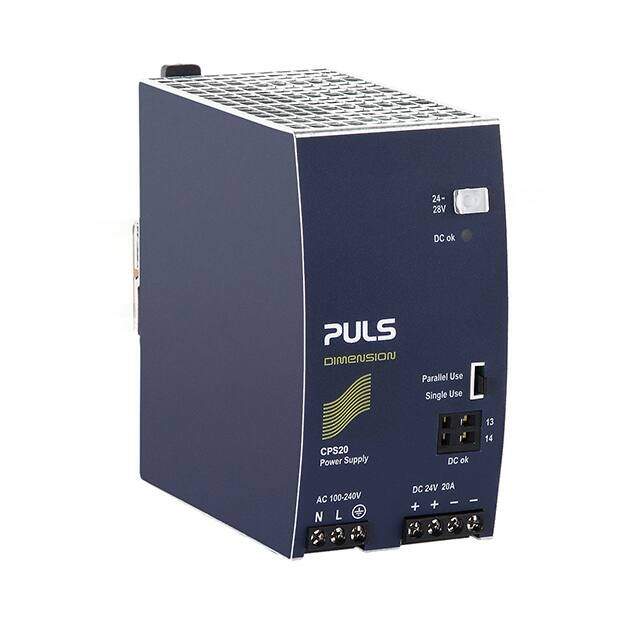

Switched-mode power supply 24 VDC 480 W, CPS20.241, Puls
PDF
/
Buying Options
Total Price: USD $447.48
Unit Price: USD $447.48
≥1 USD $447.48
Inventory: 141
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP20
RoHS Status RoHS Compliant
Technical
Min Output Voltage 24V
Total Power Output-Max 576W
Max Input Voltage 240V
Min Input Voltage 100V
Max Output Voltage 28V
Output Current 20A
Voltage - Input 100V~264VAC
Current - Output (Max) 20A
Trim/Adjustable Output YES
Input Voltage-Nom 100V
Output Voltage 24V
Voltage - Isolation 3kV
Efficiency 94%
Approval Agency cCSAus, CE, cULus, cURus
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Depth 127mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Additional Feature ALSO AVAIALBE WITH DIFFE MOUNITING AND DIFF MAX TEMP
Power (Watts) 480W
Applications Hazardous Locations, ITE (Commercial)
Type Enclosed
Number of Terminations 10
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Size / Dimension 5.00Lx2.56W x 4.88 H 127.0mmx65.0mmx124.0mm
Series DIMENSION C (480W)
Operating Temperature -25°C~70°C With Derating
Physical
Weight 1kg
Mounting Type DIN Rail
Mount Panel
Supply Chain
Factory Lead Time 2 Weeks
