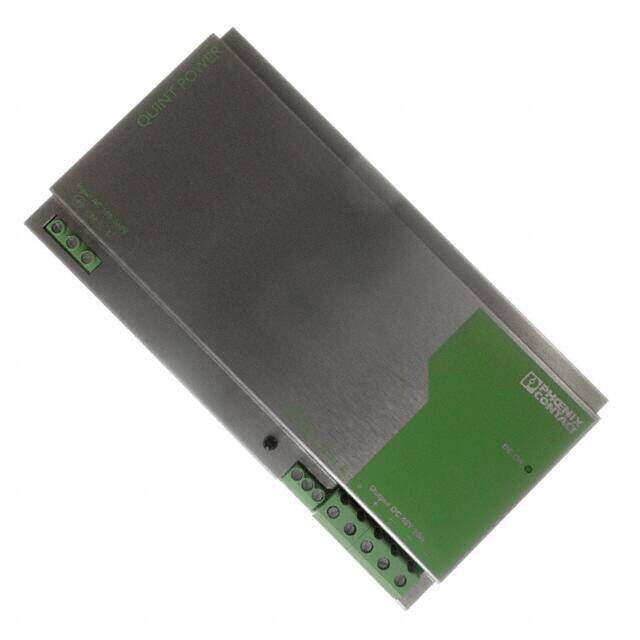

2938976
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 960W
PDF
/
Inventory: 1160
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Number of Pins 11
Weight 3.499919kg
Technical
Operating Temperature -25°C~70°C With Derating
Published 2005
Series Quint
Size / Dimension 4.92Lx9.45W x 5.12 H 125.0mmx240.0mmx130.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 960W
Depth 130mm
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 92%
Voltage - Isolation 4kV
Max Output Current 20A
Voltage - Output 1 48V
Voltage - Input 110V~240VAC
Output Current 20A
Output Power 960W
Max Output Voltage 56V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 20A
Min Output Voltage 30V
Minimum Load Required No
Dimensions
Height 130.048mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
