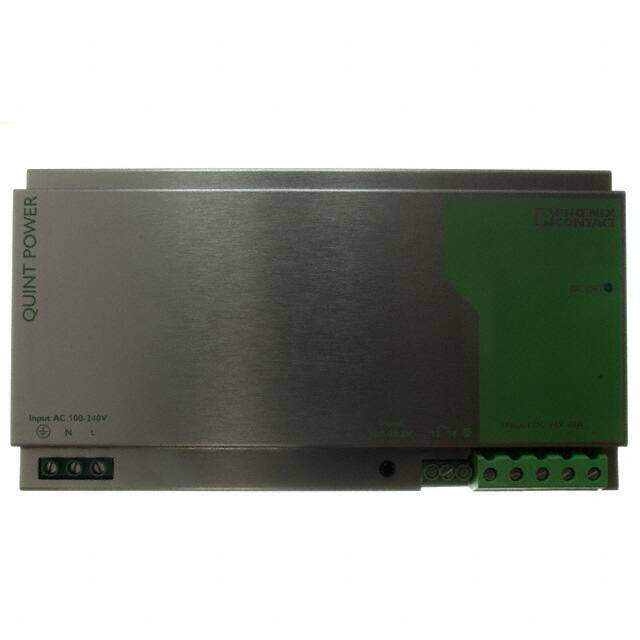

2938879
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 960W
PDF
/
Inventory: 1178
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Max Output Voltage 28.5V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 40A
Min Output Voltage 22.5V
Minimum Load Required No
Output Power 960W
Output Current 40A
Voltage - Input 110V~240VAC
Current - Output (Max) 40A
Voltage - Output 1 24V
Max Output Current 40A
Voltage - Isolation 4kV
Efficiency 92%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Depth 130mm
Max Power Dissipation 960W
Power (Watts) 960W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.92Lx9.45W x 5.12 H 125.0mmx240.0mmx130.0mm
Series Quint
Published 2005
Operating Temperature -25°C~70°C With Derating
Dimensions
Height 130.048mm
Length 124.968mm
Width 240.03mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Weight 3.499919kg
Number of Pins 11
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
