2938866
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

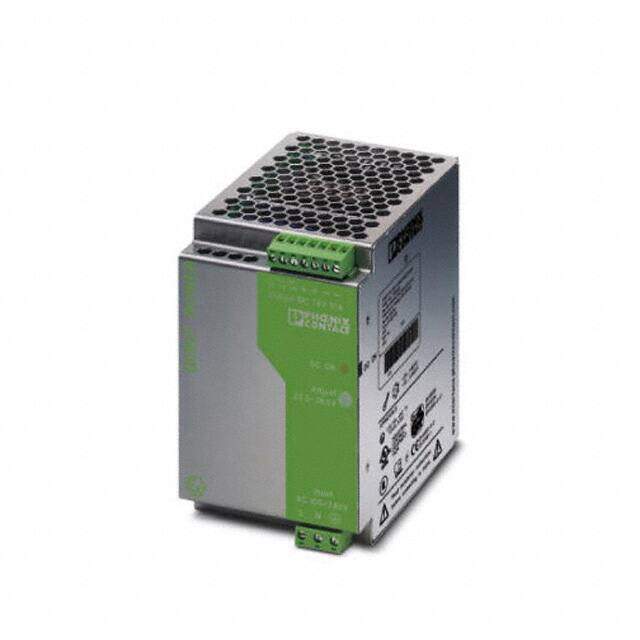

DIN Rail Power Supplies QUINT100-240AC/24DC 24VDC 10A
PDF
/
Inventory: 1197
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Number of Pins 10
Weight 1.299996kg
Technical
Operating Temperature -25°C~70°C With Derating
Published 2003
Series Quint
Size / Dimension 4.92Lx3.35W x 5.12 H 125.0mmx85.0mmx130.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 240W
Max Power Dissipation 240W
Depth 130mm
Current Rating 10A
Frequency 65Hz
Voltage - Rated AC 264V
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 88%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 10A
Voltage - Output 1 24V
Current - Output (Max) 10A
Voltage - Input 85V~264VAC
Output Current 10A
Output Power 240W
Max Output Voltage 28.5V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 10A
Min Output Voltage 22.5V
Minimum Load Required No
Dimensions
Height 130.048mm
Length 124.968mm
Width 85.09mm
Compliance
RoHS Status RoHS Compliant
