2938853
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

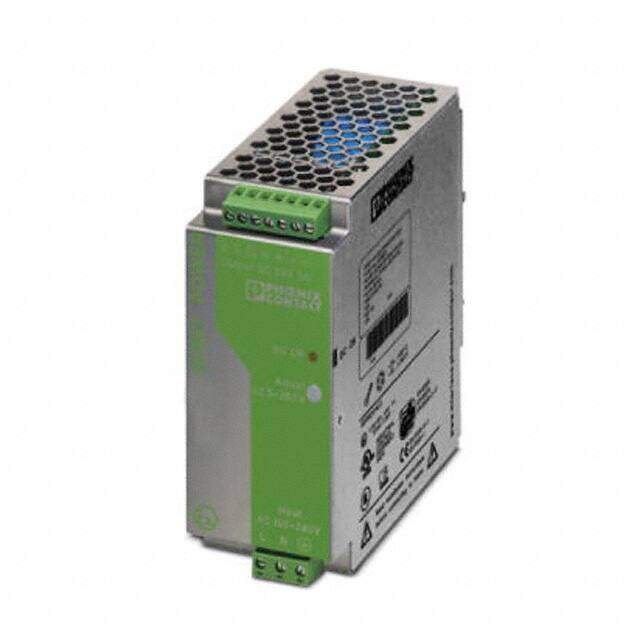

DIN Rail Power Supplies QUINT 24VOLT 5AMP
PDF
/
Inventory: 917
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Number of Pins 9
Weight 1.000171kg
Technical
Operating Temperature -25°C~70°C With Derating
Published 2003
Series Quint
Size / Dimension 5.12Lx2.17W x 4.92 H 130.0mmx55.0mmx125.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 120W
Depth 130mm
Current Rating 5A
Frequency 65Hz
Voltage - Rated AC 264V
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 87%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 5A
Voltage - Input 85V~264VAC
Output Current 7.5A
Output Power 120W
Max Output Voltage 28.5V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 5A
Min Output Voltage 22.5V
Minimum Load Required No
Dimensions
Height 124.968mm
Compliance
RoHS Status RoHS Compliant
