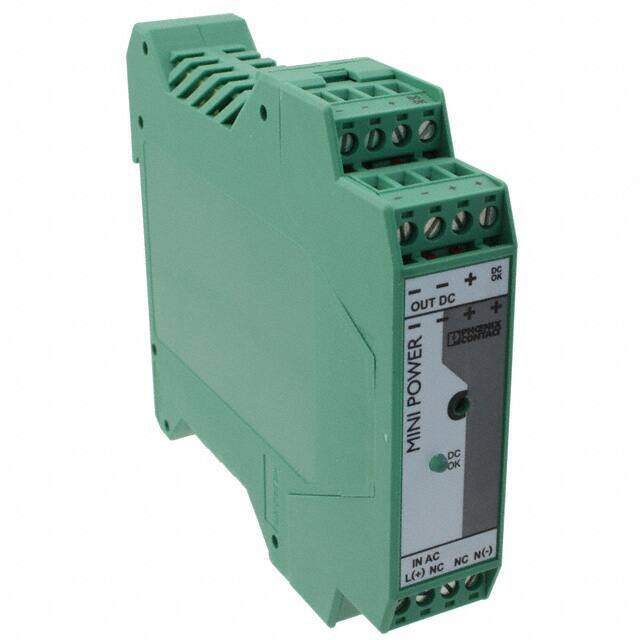

2938840
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 24W
PDF
/
Buying Options
Total Price: USD $277.59
Unit Price: USD $277.58812
≥1 USD $277.58812
≥10 USD $261.875586
≥100 USD $247.05244
≥500 USD $233.068334
≥1000 USD $219.87579
Inventory: 1160
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Weight 199.999989g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2003
Series MINI
Size / Dimension 4.51Lx0.89W x 3.90 H 114.5mmx22.5mmx99.0mm
Feature Adjustable Output, Load Sharing, PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 24W
Max Power Dissipation 24W
Depth 99mm
Number of Outputs 1
Approval Agency cULus, cURus
Efficiency 80%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 1A
Voltage - Output 1 24V
Current - Output (Max) 1A
Voltage - Input 100V~240VAC
Output Current 1A
Output Power 24W
Max Output Voltage 28.5V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 1A
Min Output Voltage 22.5V
Dimensions
Height 99.06mm
Length 114.554mm
Width 22.606mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
