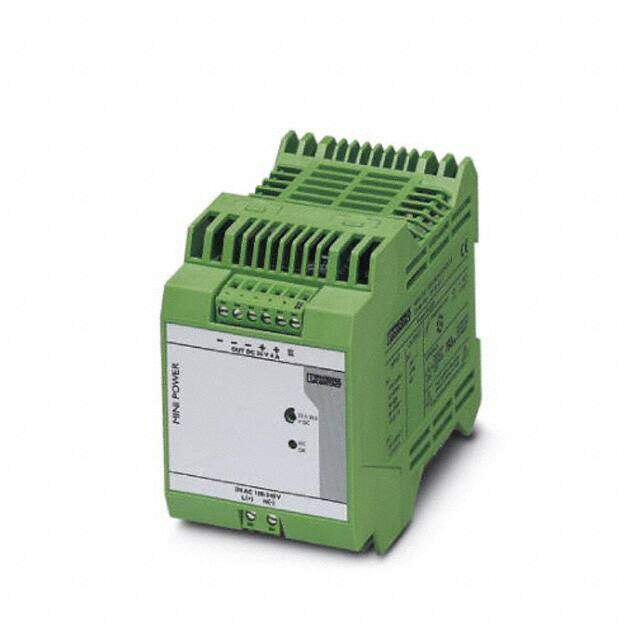

2938837
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 96W
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height 99mm
Technical
Min Output Voltage 22.5V
Current - Output 1 4A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 28.5V
Output Power 96W
Output Current 4A
Voltage - Input 100V~240VAC
Max Output Current 4A
Housing Color Green
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 88%
Approval Agency cULus, cURus
Number of Outputs 1
Frequency 65Hz
Depth 99mm
Max Power Dissipation 96W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Load Sharing, PFC, Universal Input
Size / Dimension 4.21Lx2.66W x 3.90 H 107.0mmx67.5mmx99.0mm
Series MINI
Published 2003
Operating Temperature -25°C~70°C With Derating
Physical
Weight 400.000006g
Mounting Type DIN Rail
Mount DIN Rail
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
