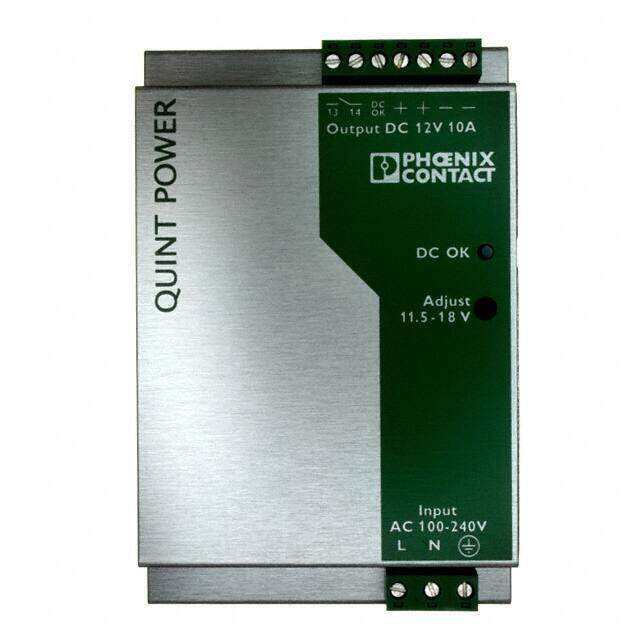

2938811
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 120W
PDF
/
Inventory: 1195
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 130.048mm
Technical
Minimum Load Required No
Min Output Voltage 11.5V
Current - Output 1 10A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 18V
Output Power 120W
Output Current 10A
Voltage - Input 100V~240VAC
Max Output Current 10A
Output Voltage 12V
Voltage - Isolation 4kV
Efficiency 92%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Voltage - Rated AC 264V
Frequency 65Hz
Current Rating 10A
Depth 130mm
Max Power Dissipation 120W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 5.12Lx3.35W x 5.12 H 130.0mmx85.0mmx130.0mm
Series Quint
Published 2003
Packaging Box
Operating Temperature -25°C~70°C With Derating
Physical
Weight 1.299996kg
Package / Case 100
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
