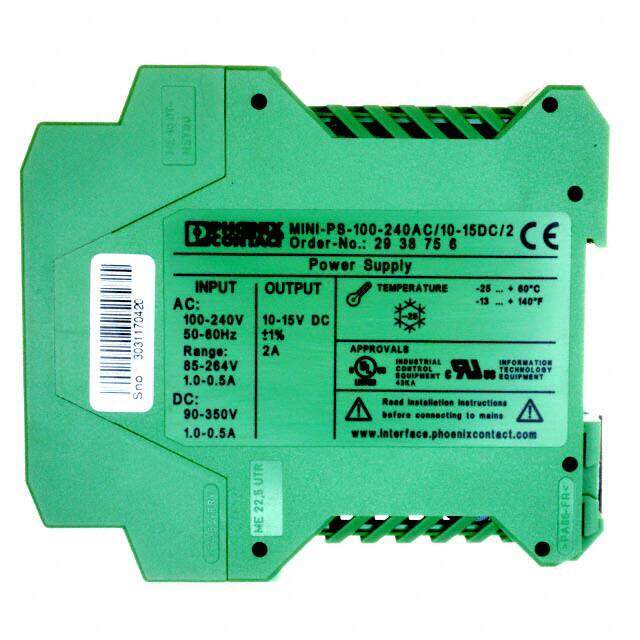

2938756
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 30W
PDF
/
Inventory: 1141
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 99.06mm
Technical
Current - Output 3 2A
Current - Output 2 2A
Min Output Voltage 10V
Voltage - Output 3 15V
Current - Output 1 2A
Max Input Voltage 264V
Min Input Voltage 85V
Voltage - Output 2 10V
Max Output Voltage 15V
Output Power 25W
Output Current 2A
Voltage - Input 100V~240VAC
Max Output Current 2A
Housing Color Black
Output Voltage 12V
Voltage - Isolation 4kV
Efficiency 86%
Approval Agency cULus, cURus
Number of Outputs 1
Depth 99mm
Max Power Dissipation 30W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Last Time Buy
Feature Adjustable Output, Load Sharing, PFC, Universal Input
Size / Dimension 4.21Lx1.77W x 3.90 H 107.0mmx45.0mmx99.0mm
Series MINI
Published 2004
Packaging Box
Operating Temperature -25°C~70°C With Derating
Physical
Weight 249.999986g
Mounting Type DIN Rail
Mount DIN Rail
Contact Plating Gold
Supply Chain
Factory Lead Time 5 Weeks
