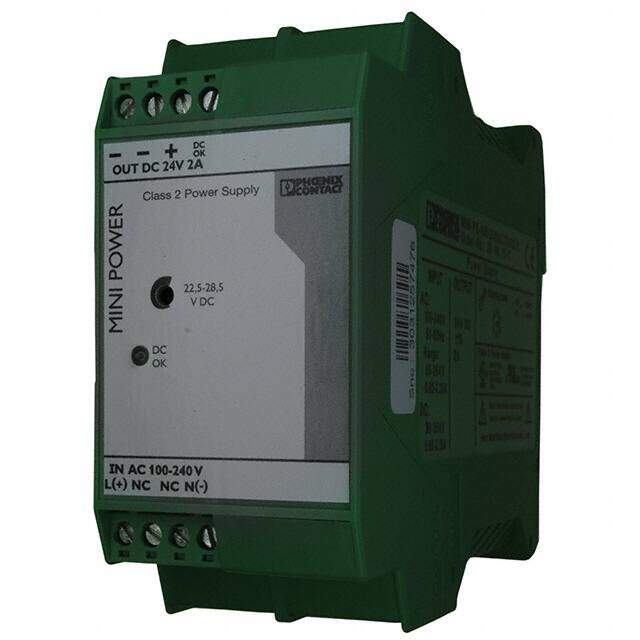

2938730
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 48W
PDF
/
Inventory: 1174
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 45mm
Length 114.5mm
Height 99mm
Technical
Nominal Input Voltage (AC) 240V
Min Input Voltage (AC) 85V
Min Input Voltage (DC) 90V
Max Input Voltage (DC) 350V
Minimum Load Required No
Min Output Voltage 22.5V
Current - Output 1 2A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 28.5V
Output Power 48W
Output Current 2A
Voltage - Input 100V~240VAC
Current - Output (Max) 2A
Max Voltage Rating (AC) 264V
Voltage - Output 1 24V
Max Output Current 2A
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 88%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Frequency 65Hz
Current Rating 2A
Depth 99mm
Max Power Dissipation 48W
Power (Watts) 48W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Last Time Buy
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.21Lx1.77W x 3.90 H 107.0mmx45.0mmx99.0mm
Series Quint
Published 2005
Packaging Bulk
Operating Temperature -25°C~70°C With Derating
Physical
Weight 323.599998g
Package / Case 100
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 5 Weeks
