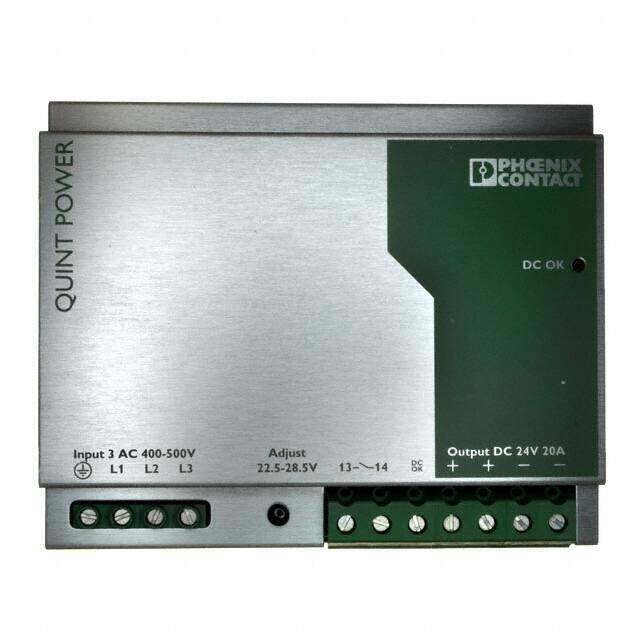

2938727
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 480W
PDF
/
Buying Options
Total Price: USD $787.49
Unit Price: USD $787.490147
≥1 USD $787.490147
≥10 USD $742.915234
≥100 USD $700.86343
≥500 USD $661.191917
≥1000 USD $623.765954
Inventory: 1244
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Number of Pins 7
Weight 1.000001g
Technical
Operating Temperature -25°C~70°C With Derating
Published 2005
Series Quint
Size / Dimension 4.92Lx6.30W x 5.12 H 125.0mmx160.0mmx130.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 480W
Max Power Dissipation 480W
Depth 130mm
Current Rating 20A
Frequency 65Hz
Voltage - Rated AC 575V
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 91%
Voltage - Isolation 4kV
Max Output Current 20A
Voltage - Output 1 24V
Current - Output (Max) 20A
Voltage - Input 400V~500VAC 3 Phase
Output Current 20A
Output Power 480W
Max Output Voltage 28.5V
Min Input Voltage 320V
Max Input Voltage 575V
Current - Output 1 20A
Min Output Voltage 22.5V
Minimum Load Required No
Dimensions
Height 130.048mm
Length 124.968mm
Width 160.02mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
