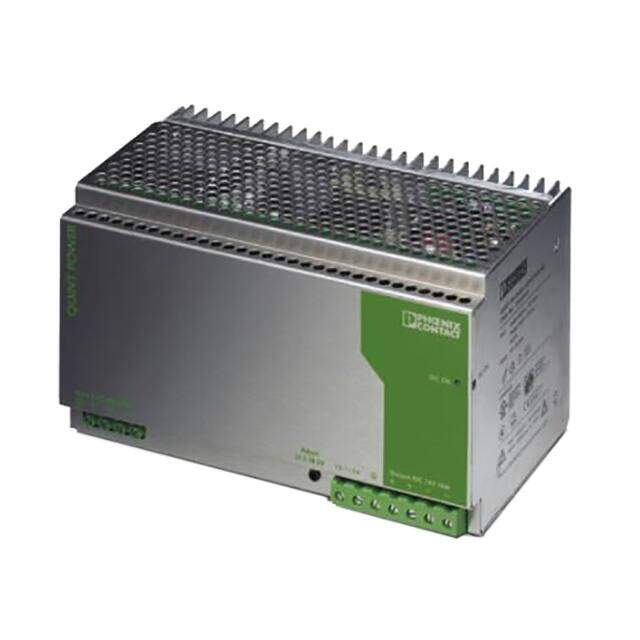

2938646
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 960W
PDF
/
Buying Options
Total Price: USD $1986.7
Unit Price: USD $1986.696495
≥1 USD $1986.696495
≥10 USD $1921.369908
≥25 USD $1908.013816
≥50 USD $1894.750572
≥100 USD $1855.7792
≥500 USD $1723.10047
Inventory: 1139
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Number of Pins 7
Weight 3.499919kg
Technical
Operating Temperature -25°C~70°C With Derating
Published 2005
Series Quint
Size / Dimension 4.92Lx9.45W x 5.12 H 125.0mmx240.0mmx130.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 960W
Max Power Dissipation 960W
Depth 130mm
Current Rating 40A
Frequency 65Hz
Voltage - Rated AC 575V
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 91%
Voltage - Isolation 4kV
Max Output Current 40A
Voltage - Output 1 24V
Current - Output (Max) 40A
Voltage - Input 400V~500VAC 3 Phase
Output Current 40A
Output Power 960W
Max Output Voltage 28.5V
Min Input Voltage 320V
Max Input Voltage 575V
Current - Output 1 40A
Min Output Voltage 22.5V
Minimum Load Required No
Dimensions
Height 130.048mm
Length 124.968mm
Width 240.03mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
