2938633
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

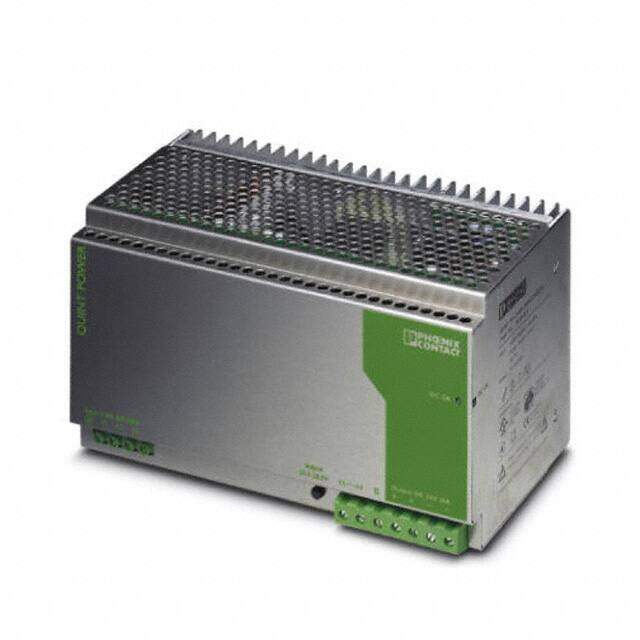

DIN Rail Power Supplies QUINT 3PHASE 24V 30A
PDF
/
Inventory: 1133
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 240.03mm
Length 130.048mm
Height 130.048mm
Technical
Minimum Load Required No
Min Output Voltage 22.5V
Current - Output 1 30A
Max Input Voltage 575V
Min Input Voltage 320V
Max Output Voltage 28.5V
Output Power 720W
Output Current 30A
Voltage - Input 320V~575VAC 3 Phase 450V~800VDC
Current - Output (Max) 30A
Voltage - Output 1 24V
Max Output Current 30A
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 92%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Voltage - Rated AC 575V
Frequency 65Hz
Current Rating 30A
Depth 130mm
Max Power Dissipation 720W
Power (Watts) 720W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Last Time Buy
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 5.12Lx9.45W x 5.12 H 130.0mmx240.0mmx130.0mm
Series Quint
Published 2005
Operating Temperature -25°C~70°C With Derating
Physical
Weight 3.299884kg
Number of Pins 7
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 5 Weeks
