2938620
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

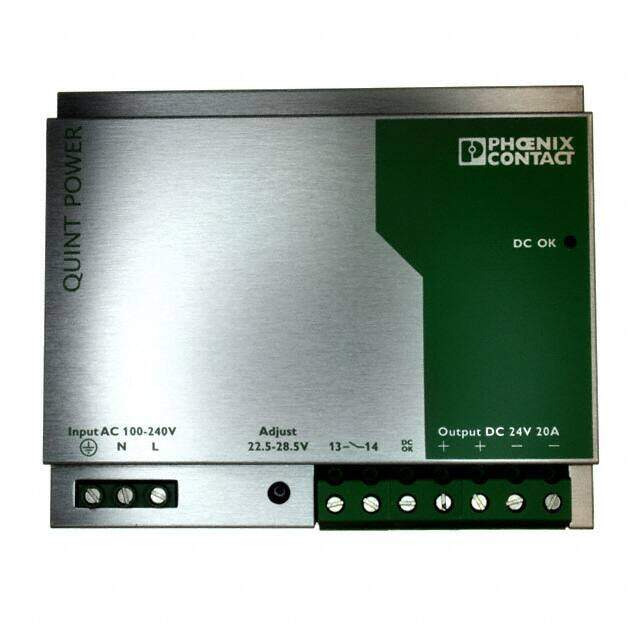

AC/DC CONVERTER 24V 480W
PDF
/
Inventory: 1198
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Number of Pins 11
Weight 2.000002g
Technical
Operating Temperature -25°C~70°C With Derating
Packaging Bulk
Published 2005
Series Quint
Size / Dimension 4.92Lx6.18W x 5.12 H 125.0mmx157.0mmx130.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 480W
Depth 80mm
Current Rating 20A
Frequency 65Hz
Voltage - Rated AC 264V
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 92%
Voltage - Isolation 4kV
Output Voltage 36V
Max Output Current 20A
Voltage - Output 1 24V
Max Voltage Rating (AC) 264V
Voltage - Input 100V~240VAC
Output Current 5.6A
Output Power 480W
Max Output Voltage 28.5V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 20A
Min Output Voltage 22.5V
Minimum Load Required No
Max Input Voltage (DC) 350V
Min Input Voltage (DC) 90V
Min Input Voltage (AC) 85V
Nominal Input Voltage (AC) 240V
Dimensions
Height 130.048mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
