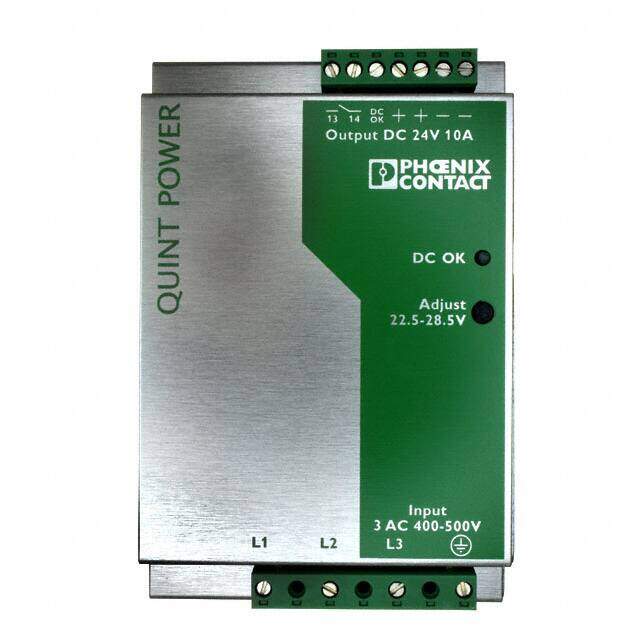

2938617
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 240W
PDF
/
Inventory: 1180
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 85.09mm
Length 124.968mm
Height 130.048mm
Technical
Nominal Input Voltage (AC) 400V
Min Input Voltage (AC) 340V
Min Input Voltage (DC) 450V
Max Input Voltage (DC) 800V
Minimum Load Required No
Min Output Voltage 22.5V
Current - Output 1 10A
Max Input Voltage 575V
Min Input Voltage 320V
Max Output Voltage 28.5V
Output Power 240W
Output Current 10A
Voltage - Input 400V~500VAC 3 Phase
Current - Output (Max) 10A
Max Voltage Rating (AC) 550V
Voltage - Output 1 24V
Max Output Current 10A
Voltage - Isolation 4kV
Efficiency 90%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Voltage - Rated AC 575V
Frequency 65Hz
Current Rating 10A
Depth 130mm
Max Power Dissipation 240W
Power (Watts) 240W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.92Lx3.35W x 5.12 H 125.0mmx85.0mmx130.0mm
Series Quint
Published 2005
Operating Temperature -25°C~70°C With Derating
Physical
Weight 1.099961kg
Number of Pins 7
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
