RoHS
RoHS RoHS compliant
Package 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters

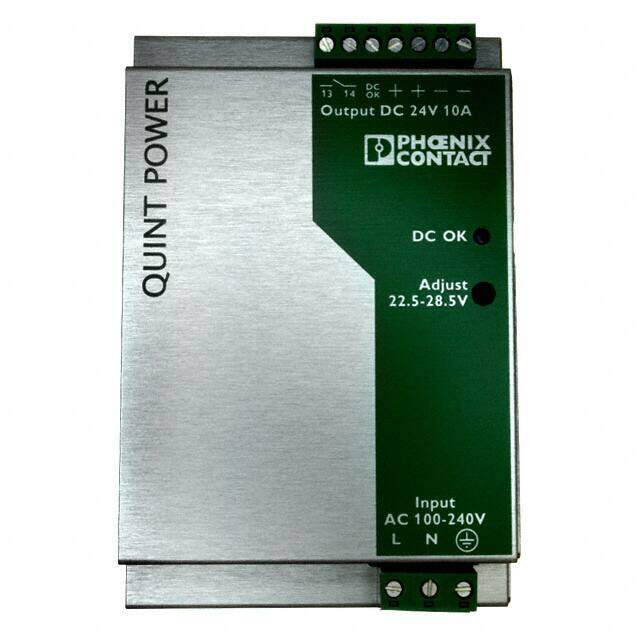

Description AC/DC CONVERTER 24V 240W
PDF
/
Inventory: 1157
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Operating Temperature -25°C~70°C With Derating
Packaging Bulk
Published 2005
Series Quint
Size / Dimension 4.92Lx3.35W x 5.12 H 125.0mmx85.0mmx130.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Minimum Load Required No
Min Output Voltage 22.5V
Current - Output 1 10A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 28.5V
Output Power 240W
Output Current 10A
Voltage - Input 85V~264VAC
Current - Output (Max) 10A
Voltage - Output 1 24V
Max Output Current 10A
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 91%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Voltage - Rated AC 240V
Frequency 65Hz
Current Rating 10A
Depth 130mm
Max Power Dissipation 240W
Power (Watts) 240W
Applications ITE (Commercial)

Physical

Weight 1.000001g
Package / Case 100
Mounting Type DIN Rail
Mount DIN Rail

Supply Chain

Factory Lead Time 7 Weeks

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 83.82mm
Length 124.46mm
Height 130.048mm
