2938594
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

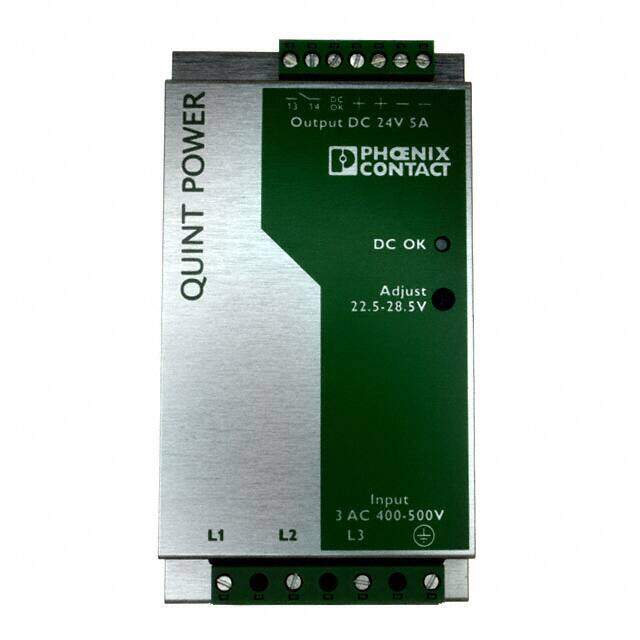

AC/DC CONVERTER 24V 120W
PDF
/
Inventory: 1123
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 130.048mm
Technical
Nominal Input Voltage (AC) 400V
Min Input Voltage (AC) 340V
Min Input Voltage (DC) 450V
Max Input Voltage (DC) 800V
Minimum Load Required No
Min Output Voltage 22.5V
Current - Output 1 5A
Max Input Voltage 575V
Min Input Voltage 320V
Max Output Voltage 28.5V
Output Power 120W
Output Current 5A
Voltage - Input 400V~500VAC 3 Phase
Max Voltage Rating (AC) 550V
Voltage - Output 1 24V
Max Output Current 5A
Voltage - Isolation 4kV
Efficiency 88%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Voltage - Rated AC 575V
Frequency 65Hz
Current Rating 5A
Depth 130mm
Max Power Dissipation 120W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Last Time Buy
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.92Lx2.76W x 5.12 H 125.0mmx70.0mmx130.0mm
Series Quint
Published 2005
Operating Temperature -25°C~70°C With Derating
Physical
Weight 949.822423g
Number of Pins 7
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 5 Weeks
