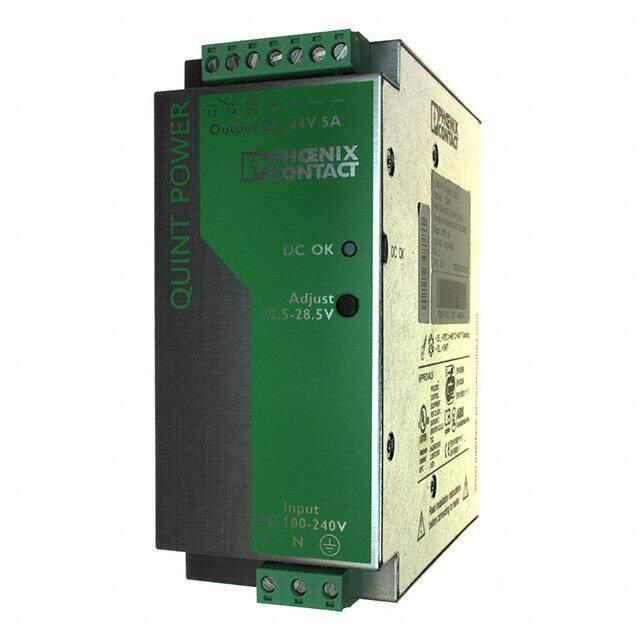

2938581
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 120W
PDF
/
Inventory: 1199
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case 100
Weight 830.074037g
Technical
Operating Temperature -25°C~70°C With Derating
Packaging Bulk
Published 2005
Series Quint
Size / Dimension 4.92Lx2.17W x 5.12 H 125.0mmx55.0mmx130.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Max Power Dissipation 14W
Depth 130mm
Current Rating 5A
Frequency 65Hz
Voltage - Rated AC 264V
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 86%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 5A
Voltage - Output 1 24V
Voltage - Input 100V~240VAC
Output Current 5A
Output Power 120W
Max Output Voltage 28.5V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 5A
Min Output Voltage 22.5V
Minimum Load Required No
Dimensions
Height 130.048mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
