2938578
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

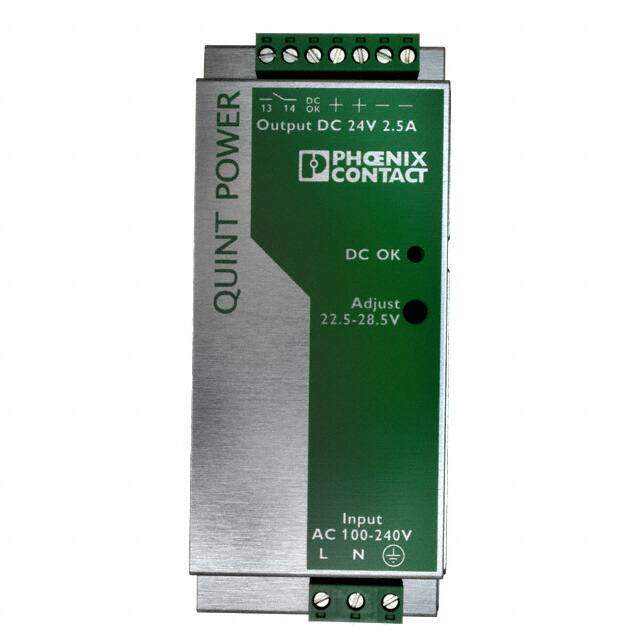

AC/DC CONVERTER 24V 60W
PDF
/
Inventory: 1156
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 130.048mm
Technical
Minimum Load Required No
Min Output Voltage 22.5V
Current - Output 1 2.5A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 28.5V
Output Power 60W
Output Current 2.5A
Voltage - Input 100V~240VAC
Voltage - Output 1 24V
Max Output Current 2.5A
Voltage - Isolation 4kV
Efficiency 86%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Voltage - Rated AC 264V
Frequency 65Hz
Current Rating 2.5A
Depth 130mm
Max Power Dissipation 10W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 4.92Lx2.17W x 5.12 H 125.0mmx55.0mmx130.0mm
Series Quint
Published 2005
Packaging Bulk
Operating Temperature -25°C~70°C With Derating
Physical
Weight 850.032101g
Number of Pins 7
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
