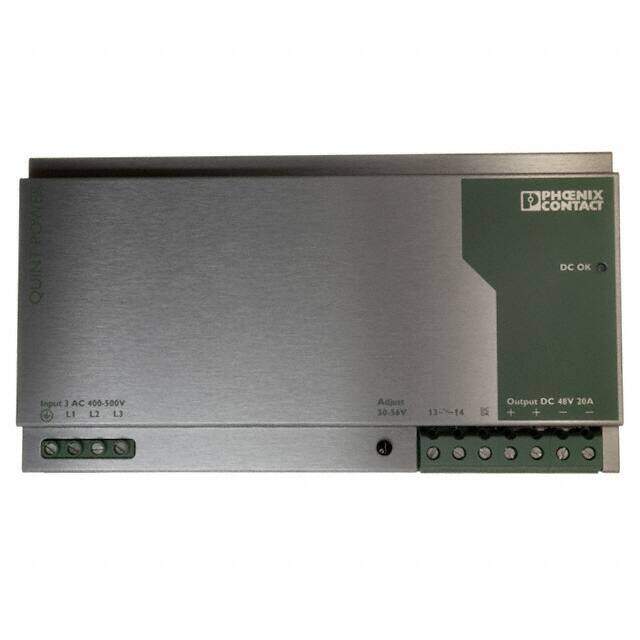

2938222
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 960W
PDF
/
Inventory: 1192
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Number of Pins 11
Weight 3.499919kg
Technical
Operating Temperature -25°C~70°C With Derating
Published 2004
Series Quint
Size / Dimension 5.12Lx9.45W x 5.12 H 130.0mmx240.0mmx130.0mm
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 960W
Max Power Dissipation 960W
Depth 130mm
Current Rating 20A
Frequency 65Hz
Voltage - Rated AC 575V
Number of Outputs 1
Approval Agency CB, cULus, cURus
Efficiency 90%
Voltage - Isolation 4kV
Max Output Current 20A
Voltage - Output 1 48V
Current - Output (Max) 20A
Voltage - Input 400V~500VAC 3 Phase
Output Current 20A
Output Power 960W
Max Output Voltage 56V
Min Input Voltage 320V
Max Input Voltage 575V
Current - Output 1 20A
Min Output Voltage 30V
Minimum Load Required No
Dimensions
Height 130.048mm
Length 130.048mm
Width 240.03mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
