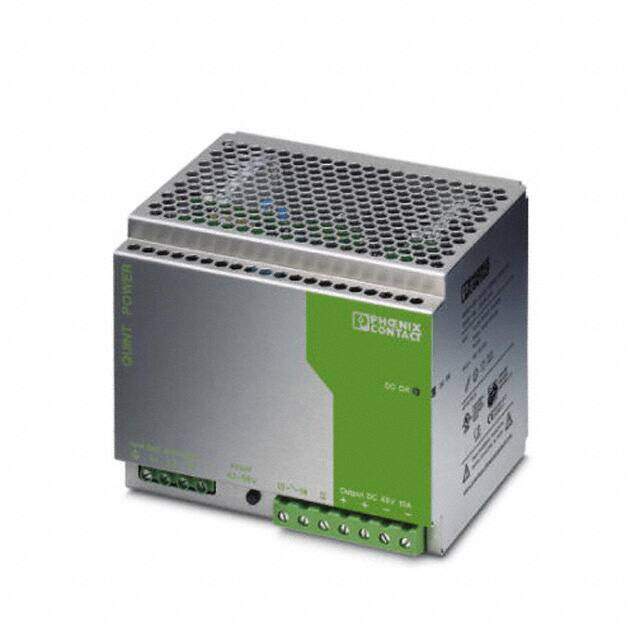

2938219
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 480W
PDF
/
Inventory: 1236
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 160.02mm
Length 130.048mm
Height 130.048mm
Technical
Minimum Load Required No
Min Output Voltage 30V
Current - Output 1 10A
Max Input Voltage 575V
Min Input Voltage 320V
Max Output Voltage 56V
Output Power 480W
Output Current 10A
Voltage - Input 400V~500VAC 3 Phase
Current - Output (Max) 10A
Voltage - Output 1 48V
Max Output Current 10A
Voltage - Isolation 4kV
Efficiency 90%
Approval Agency CB, cULus, cURus
Number of Outputs 1
Voltage - Rated AC 575V
Frequency 65Hz
Current Rating 10A
Depth 130mm
Max Power Dissipation 480W
Power (Watts) 480W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input
Size / Dimension 5.12Lx6.30W x 5.12 H 130.0mmx160.0mmx130.0mm
Series Quint
Published 2004
Operating Temperature -25°C~70°C With Derating
Physical
Weight 2.300167kg
Number of Pins 11
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
