2904375
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

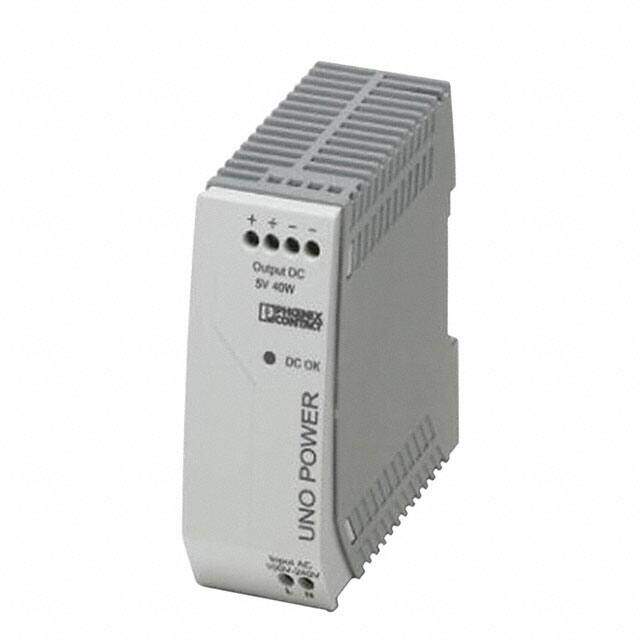

DIN Rail Power Supplies UNO-PS/1AC/ 5DC/ 40W PRIM SWCH SNGL PHASE
PDF
/
Buying Options
Total Price: USD $59.37
Unit Price: USD $59.3736
≥1 USD $59.3736
≥10 USD $54.626
≥100 USD $50.469936
≥500 USD $48.094904
Inventory: 145
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 35.052mm
Length 84.074mm
Height 89.916mm
Technical
Min Input Voltage (AC) 85V
Max Output Power 40W
Min Output Voltage 5V
Current - Output 1 8A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 5V
Output Power 40W
Output Current 8A
Voltage - Input 85V~264VAC
Current - Output (Max) 8A
Max Voltage Rating (AC) 264V
Voltage - Output 1 5V
Max Output Current 8A
Voltage - Isolation 4kV
Efficiency 85%
Approval Agency CB, cUL, cULus, cUR, cURus, UL, UR
Number of Outputs 1
Depth 90mm
Max Power Dissipation 40W
Power (Watts) 40W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature IP20, Universal Input
Size / Dimension 3.31Lx1.38W x 3.54 H 84.0mmx35.0mmx90.0mm
Series UNO
Published 2014
Operating Temperature -25°C~70°C With Derating
Physical
Weight 240.000004g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
