2903154
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

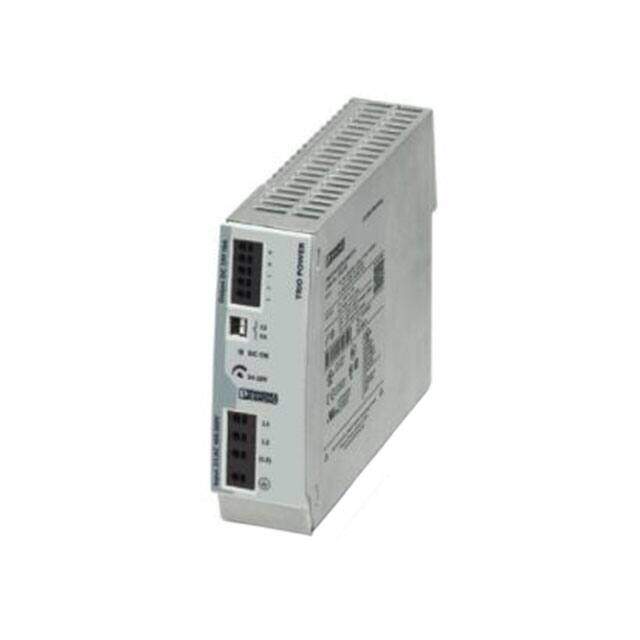

1 Output, 10A DIN Rail Power Supply TRIO, 24V dc to 28V dc
PDF
/
Buying Options
Total Price: USD $192.68
Unit Price: USD $192.6848
≥1 USD $192.6848
Inventory: 137
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Technical
Min Input Voltage (AC) 320V
Max Output Power 240W
Min Output Voltage 24V
Current - Output 1 10A
Max Input Voltage 575V
Min Input Voltage 320V
Max Output Voltage 28V
Output Power 240W
Output Current 10A
Voltage - Input 320V~575VAC 3 Phase
Current - Output (Max) 10A
Max Voltage Rating (AC) 575V
Voltage - Output 1 24V
Voltage - Isolation 4kV
Efficiency 92%
Approval Agency cULus, cURus, EAC
Number of Outputs 1
Power (Watts) 240W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 6.30Lx1.65W x 5.12 H 160.0mmx42.0mmx130.0mm
Series TRIO
Published 2009
Operating Temperature -25°C~70°C With Derating
Physical
Weight 900g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
