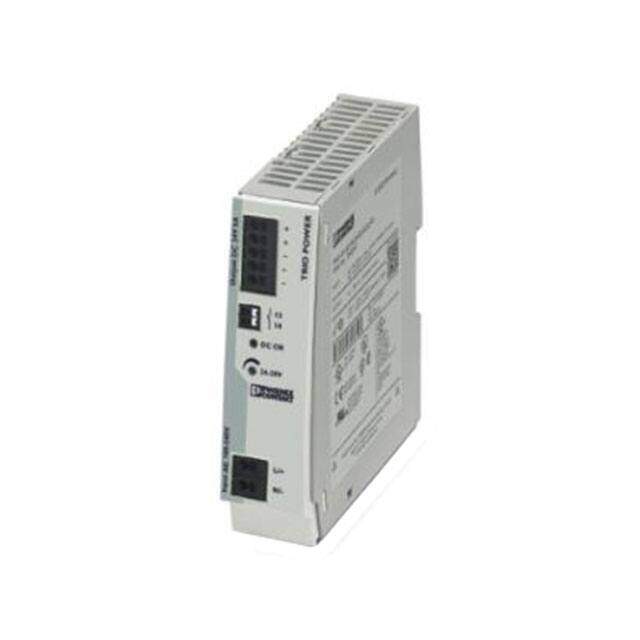

2903148
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 120W
PDF
/
Buying Options
Total Price: USD $95.73
Unit Price: USD $95.7264
≥1 USD $95.7264
Inventory: 400
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Technical
Min Input Voltage (AC) 85V
Max Output Power 120W
Min Output Voltage 24V
Current - Output 1 5A
Max Input Voltage 264V
Min Input Voltage 85V
Max Output Voltage 28V
Output Power 120W
Output Current 5A
Voltage - Input 85V~264VAC
Current - Output (Max) 5A
Max Voltage Rating (AC) 264V
Voltage - Output 1 24V
Voltage - Isolation 4kV
Efficiency 90%
Approval Agency cULus, cURus, EAC
Number of Outputs 1
Power (Watts) 120W
Applications ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 4.53Lx1.38W x 5.12 H 115.0mmx35.0mmx130.0mm
Series TRIO
Published 2009
Operating Temperature -25°C~70°C With Derating
Physical
Weight 450g
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 7 Weeks
